PLAN 48-1006
Photographs may show modified designs.
- Jump to:
- All (5)
- Floor plans (1)
Get Personalized Help
Key Specs
1136
sq ft
0
Beds
1
Baths
1
Floors
3
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 48-1006
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
This contemporary design floor plan is 1136 sq ft and has 0 bedrooms and 1 bathrooms.
Floor Plans

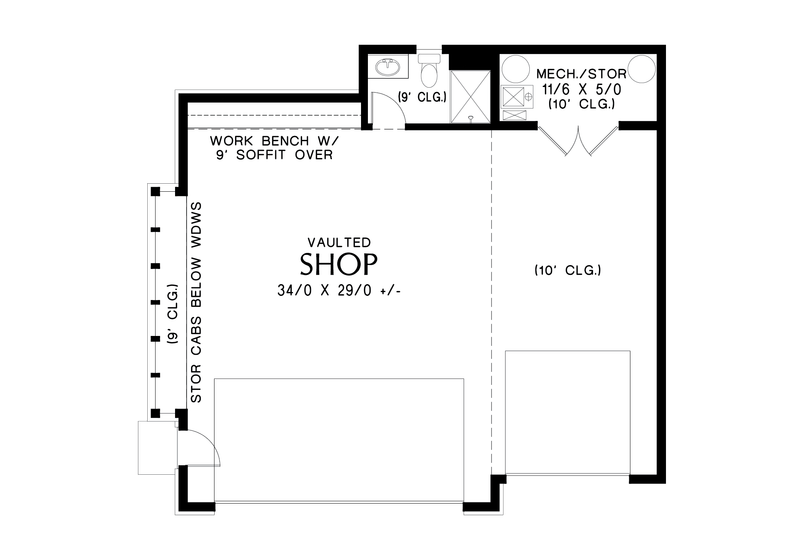

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 35' 6"
Height : 17' 8"
Width : 37'
Area
Garage : 1136 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 0"
Roof
Primary Pitch : 2/12
Roof Framing : Stick Roof
Roof Load : 25
Roof Type : Metal/Standing Seam Roof
Exterior Wall Framing
Framing : 2x6
Insulation : Per IRC
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Additional Room Features
Main Floor Laundry
Garage Features
Detached Garage
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
What's Included In This Plan Set
- Exterior Elevations
- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
-
Foundation Plan
- The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.
-
Floor Plan(s)
- Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
-
Building Sections
- Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
-
Roof Plan
- Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
-
Notes and Details Page(s)
- Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$830.00
$830.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1030.00
$1030.00
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$1080.00
$1080.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$1660.00
$1660.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$225.00
$225.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.00
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
