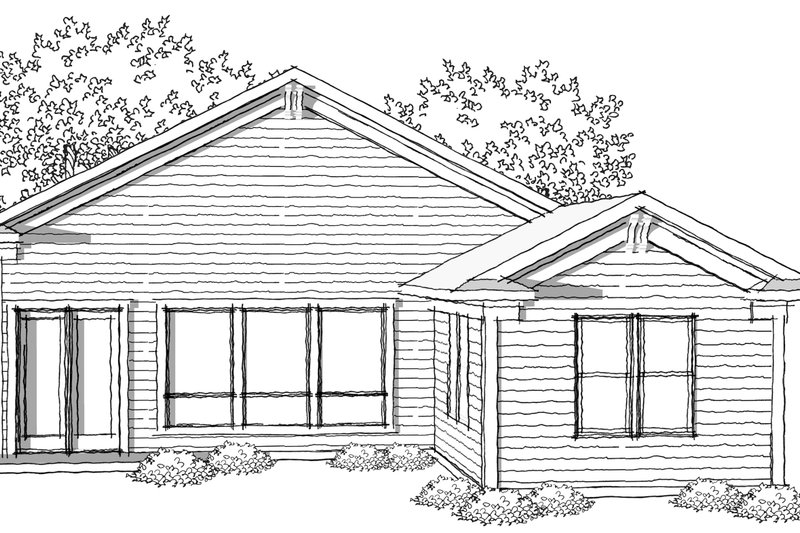

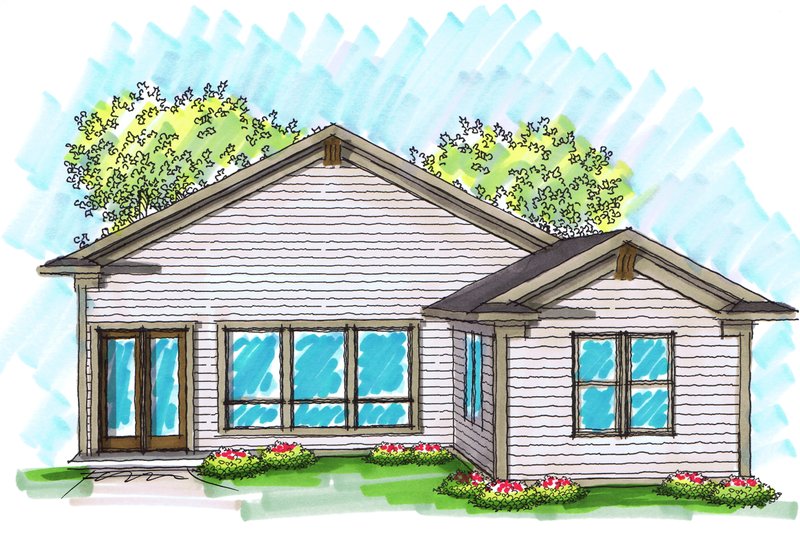

House Plan Design - Ranch Exterior - Rear Elevation Plan #70-1025

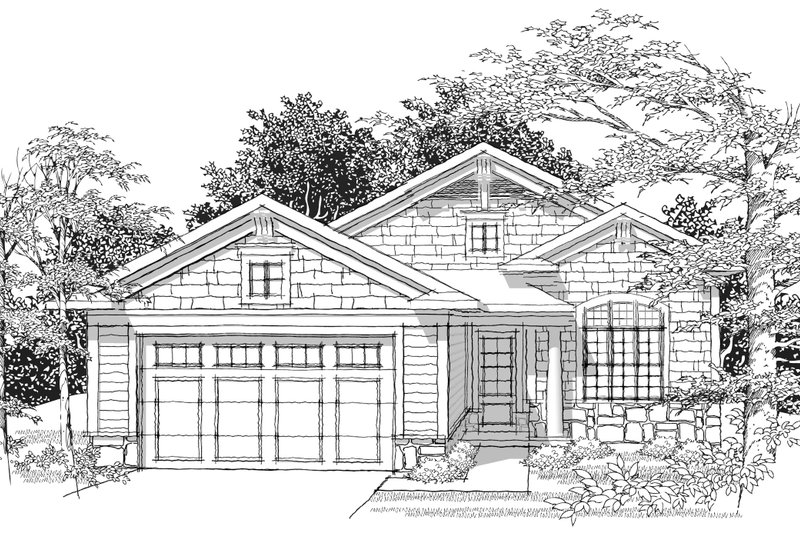

House Plan Design - Ranch Photo Plan #70-1025

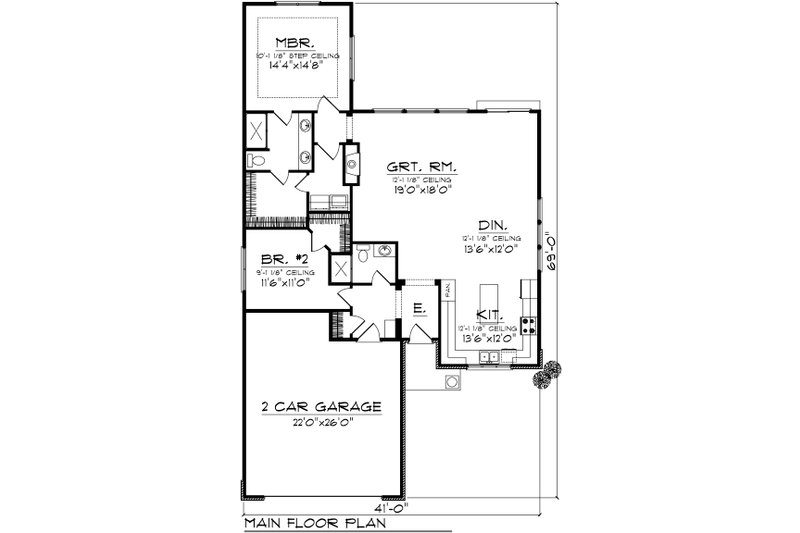

House Plan Design - Ranch Floor Plan - Main Floor Plan #70-1025

Jump to:
All (5)
Exterior (2)
Floor plans (1)
Photo (2)

Get Personalized Help

Home > Style > Ranch Home Plans

Key Specs

1540
sq ft

2
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$395.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$75.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$973.00

Also order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 70-1025

Home > Style > Ranch Home Plans

Key Specs

1540
sq ft

2
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

A welcome addition to any neighborhood, youâ€™ll love the extra details that include decorative corbels, shingle and stone siding, and a support pillar on the porch entry. The living area lies to the left of the entry where a kitchen, complete with center island, flows seamlessly into the dining and living areas. A large wall of windows lets enough natural light in to make this living area cozy and comfortable. Two bedrooms lie to the left of the entry behind the garage where the master is equipped with a walk-in closet and private bathroom with dual sinks. The second bedroom, just behind the garage has private access to the laundry and bathrooms just outside the door. Extra space in the garage will please all dads.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 69'

Height : 22' 1"

Width : 41'

Area

First Floor: 1540 sq/ft

Garage: 532 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Master Bedroom 10' Step, Great Room/Dining Room/Kitchen 12'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Load : 47

Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Shake / Stone / Siding

Framing : 2 x 6

Insulation : R-19

Bedroom Features

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Great Room Living Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Empty Nester

Rooms

Bedroom 2:

126 sq/ft width 11' 6" x depth 11'

Bedroom 2 Closet:

30 sq/ft width 5' 8" x depth 5' 4"

Dining Room:

162 sq/ft width 13' 6" x depth 12'

Foyer:

37 sq/ft width 5' 2" x depth 7' 2"

Garage:

572 sq/ft width 22' x depth 26'

Great Room:

342 sq/ft width 19' x depth 18'

Half Bathroom:

49 sq/ft width 9' x depth 5' 6"

Hall:

18 sq/ft width 4' 6" x depth 4' 2"

Hall Closet:

7 sq/ft width 2' 1" x depth 3' 6"

Kitchen:

162 sq/ft width 13' 6" x depth 12'

Laundry Room:

46 sq/ft width 5' x depth 9' 4"

Master Bathroom:

72 sq/ft width 9' x depth 8'

Master Bedroom:

210 sq/ft width 14' 4" x depth 14' 8"

Master Closet:

63 sq/ft width 8' 4" x depth 7' 8"

Mud Room:

43 sq/ft width 6' x depth 7' 2"

Porch - Front:

56 sq/ft width 8' x depth 7'

Slab Foundation:

2829 sq/ft width 41' x depth 69'

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
