Plan Description

This cottage design floor plan is 1655 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

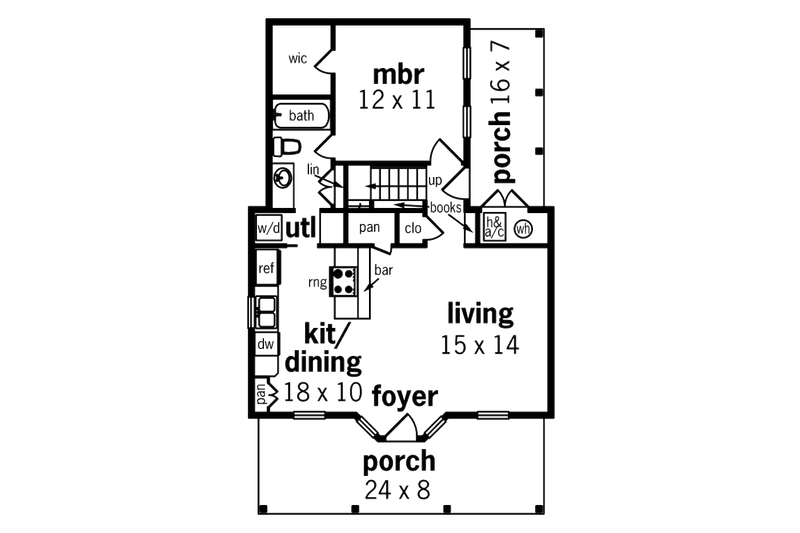

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 42'

Height : 23'

Width : 26'

Area

First Floor: 757 sq/ft height 9'

Porch: 272 sq/ft

Second Floor: 626 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12

Roof Framing : stick

Roof Type : Asphalt

Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x6"

Insulation : R-19 Walls, R-38 Ceiling

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Loft

Storage Area

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch
