PLAN 1070-27

Home > Style > Craftsman Home Plans

Key Specs

1852
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

Sunny and bright, this 1,852-square-foot home feels totally fresh. The open layout flows from the island kitchen to the family room, where a fireplace adds warm ambiance. The main-level master suite gives you a private 5-piece bathroom.

Floor Plans

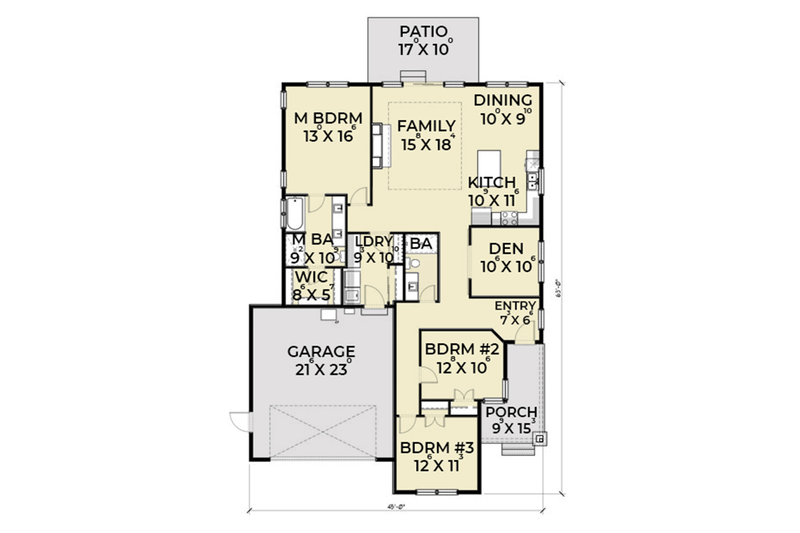

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 63'

Height : 24' 11"

Width : 45'

Area

Garage : 520 sq/ft

Main Floor : 1852 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Step ceiling in Family Room

Main Ceiling : 9'

Roof

Primary Pitch : 6/12

Roof Framing : Truss

Roof Type : Shingle

Secondary Pitch : 8/12

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2 x 6

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Economical To Build

Rooms

Bedroom 2:

width 12' 8" x depth 10' 6"

Bedroom 3:

width 12' 6" x depth 10' 6"

Den:

width 10' 6" x depth 10' 6"

Dining Room:

width 10' x depth 9' 10"

Entry:

width 7' 2" x depth 6' 6"

Family Room:

width 15' 8" x depth 18' 4"

Kitchen:

width 10' 9" x depth 11' 6"

Laundry:

width 9' 3" x depth 10' 10"

Master Bath:

width 8' 8" x depth 10' 9"

Master Bedroom:

width 13' x depth 16' 6"

Master Closet:

width 8' 6" x depth 5' 7"

What's Included In This Plan Set

See a sample plan set

Please note: This designer includes the bonus square feet to the total heated living square feet.

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$1400.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set:
$1760.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set:
$1800.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Study Set:
$700.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$156.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$40.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$600.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$132.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$236.00

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$132.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
