PLAN 929-663
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
1968
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 929-663
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

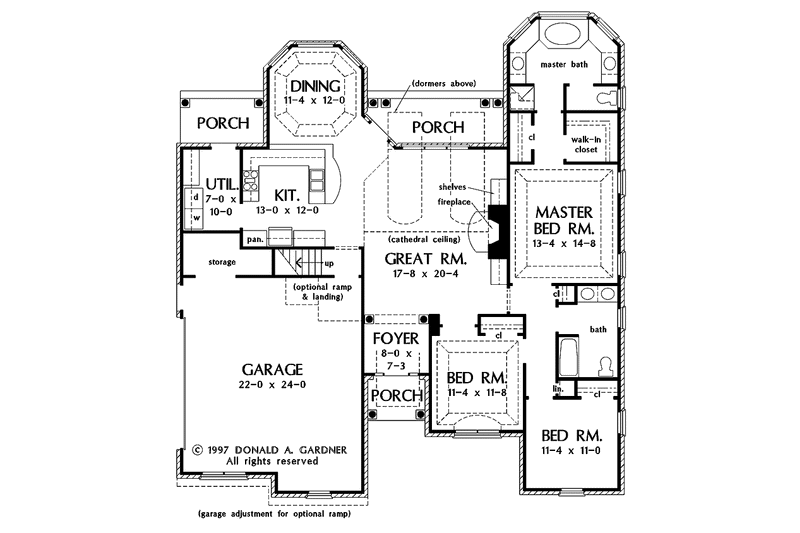

Floor Plan - Main Floor

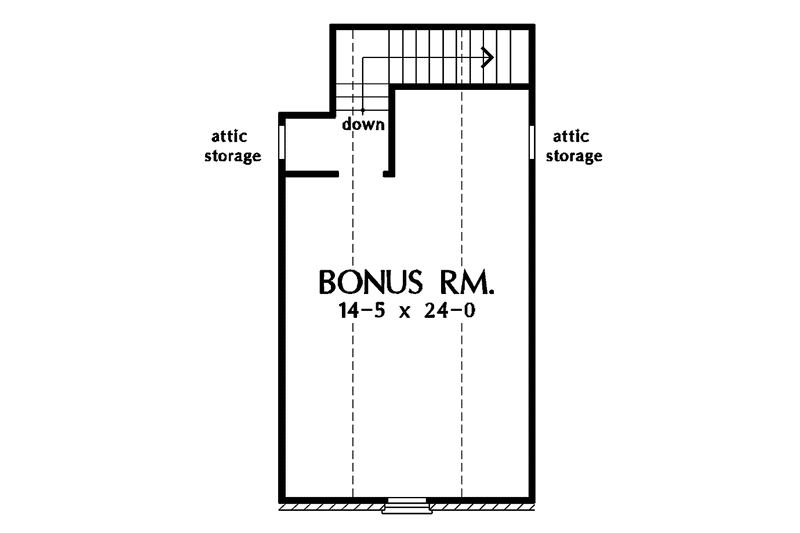

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 59' 10"
Height : 44'
Width : 55' 3"
Area
Bonus: 339 sq/ft
First Floor: 1968 sq/ft height 9'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Additional Room Features
Great Room Living Room
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
3rd BR Closet:
10 sq/ft width 5' 3" x depth 2'
Bathroom 2:
83 sq/ft width 7' 4" x depth 11' 4"
Bedroom 2:
124 sq/ft width 11' 4" x depth 11'
Bedroom 2 Closet:
9 sq/ft width 4' 8" x depth 2'
Bedroom 3:
132 sq/ft width 11' 4" x depth 11' 8"
Bedroom 3 Closet:
9 sq/ft width 4' 8" x depth 2'
Bonus Room - Finished:
346 sq/ft width 14' 5" x depth 24'
Dining Room:
135 sq/ft width 11' 4" x depth 12'
Foyer:
58 sq/ft width 8' x depth 7' 3"
Garage:
528 sq/ft width 22' x depth 24'
Garage Storage:
36 sq/ft width 7' x depth 5' 2"
Gathering Room:
359 sq/ft width 17' 8" x depth 20' 4"
Hall Closet:
4 sq/ft width 2' x depth 2'
Kitchen:
156 sq/ft width 13' x depth 12'
Master Bathroom:
149 sq/ft width 13' 4" x depth 11' 3"
Master Bedroom:
195 sq/ft width 13' 4" x depth 14' 8"
Master Closet:
39 sq/ft width 6' 6" x depth 6'
Porch - Front:
42 sq/ft width 8' x depth 5' 4"
Porch - Left:
68 sq/ft width 11' 1" x depth 6' 2"
Porch - Rear:
108 sq/ft width 17' 8" x depth 6' 2"
Utility Room:
70 sq/ft width 7' x depth 10'
