PLAN 413-867

Home > Style > Tudor Home Plans

Key Specs

1984
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

This one of a kind English Tudor, Craftsman style house plan offers you a lot of features with a grand exterior The master bath features double vanities, whirlpool tub, dressing room and much more. The floor plan features glass across the back of the house which brings in plenty of natural light. The garage has 2-car dimensions perfect for your vehicles or other hobbies.

Floor Plans

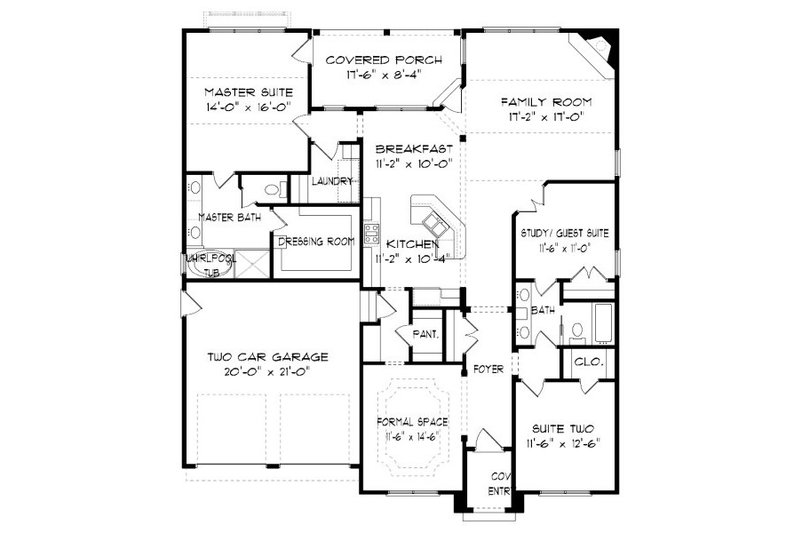

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 55' 6"

Height : 25'

Width : 50'

Area

First Floor: 1984 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 14:12

Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : 2"x6"

Bedroom Features

Guest Suite

Split Bedrooms

Kitchen Features

Breakfast Nook

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Rear Porch

Rooms

Breakfast:

111 sq/ft width 11' 2" x depth 10'

Covered Porch:

145 sq/ft width 17' 6" x depth 8' 4"

Family Room:

291 sq/ft width 17' 2" x depth 17'

Garage:

420 sq/ft width 20' x depth 21'

Guest Suite:

126 sq/ft width 11' 6" x depth 11'

Guest Suite 2:

143 sq/ft width 11' 6" x depth 12' 6"

Kitchen:

115 sq/ft width 11' 2" x depth 10' 4"

Master Suite:

224 sq/ft width 14' x depth 16'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
