PLAN 406-284

Home > Style > Southern

Key Specs

1997
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

This southern design floor plan is 1997 sq ft and has 4 bedrooms and 2.5 bathrooms.

Floor Plans

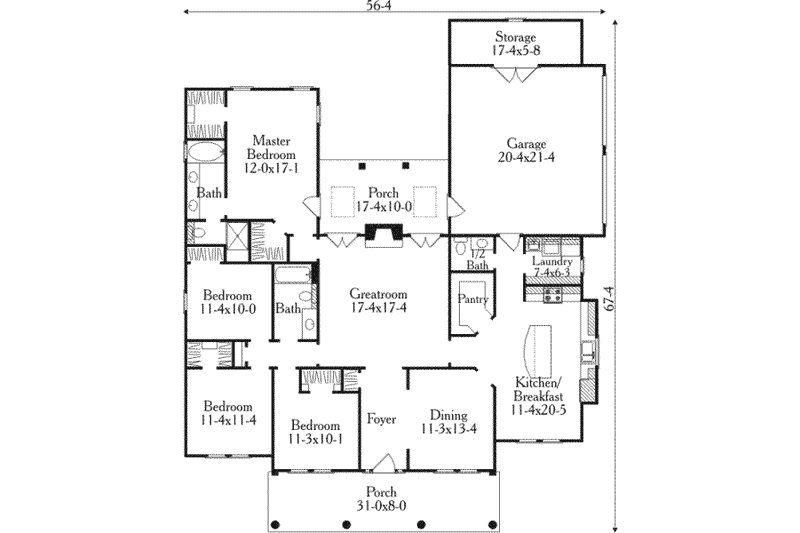

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 67' 4"

Height : 25'

Width : 56' 4"

Area

First Floor: 1997 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x4"

Bedroom Features

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

113 sq/ft width 11' 3" x depth 10' 1"

Bedroom 3:

128 sq/ft width 11' 4" x depth 11' 4"

Bedroom 4:

113 sq/ft width 11' 4" x depth 10'

Dining Room:

153 sq/ft width 11' 3" x depth 13' 8"

Garage:

433 sq/ft width 20' 4" x depth 21' 4"

Garage Storage:

98 sq/ft width 17' 4" x depth 5' 8"

Hall Bathroom:

58 sq/ft width 5' 10" x depth 10'

Laundry Room:

45 sq/ft width 7' 4" x depth 6' 3"

Living Room:

300 sq/ft width 17' 4" x depth 17' 4"

Master Bathroom:

70 sq/ft width 14' x depth 5'

Master Bedroom:

204 sq/ft width 12' x depth 17' 1"

Porch - Front:

248 sq/ft width 31' x depth 8'

Porch - Rear:

173 sq/ft width 17' 4" x depth 10'

Powder Room:

25 sq/ft width 4' 6" x depth 5' 8"

What's Included In This Plan Set

See a sample plan set

The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes

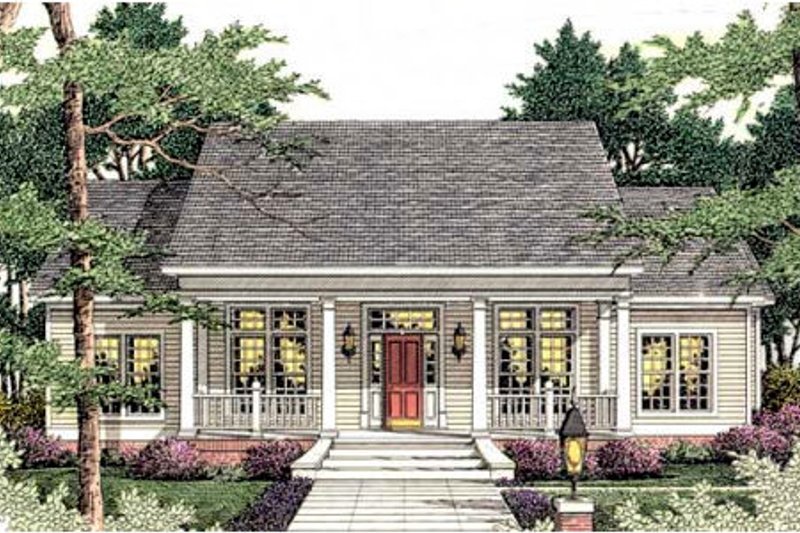

The second sheet is typically the front and side elevation drawn to 1/4" scale.

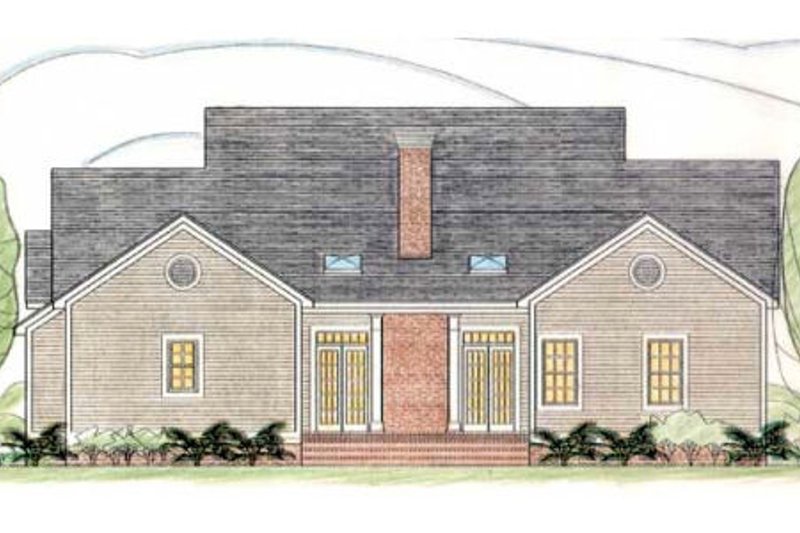

The third sheet is the rear and side elevation drawn to 1/4" scale.
