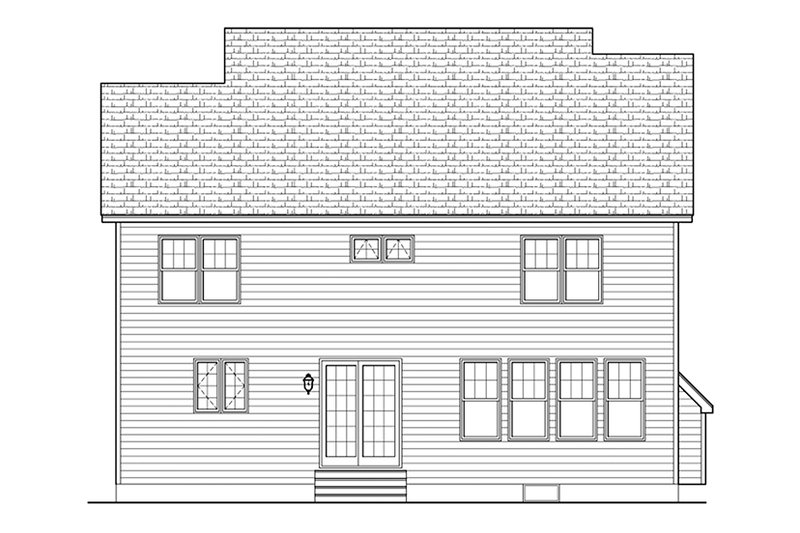

House Plan Design - Colonial Exterior - Rear Elevation Plan #1010-130

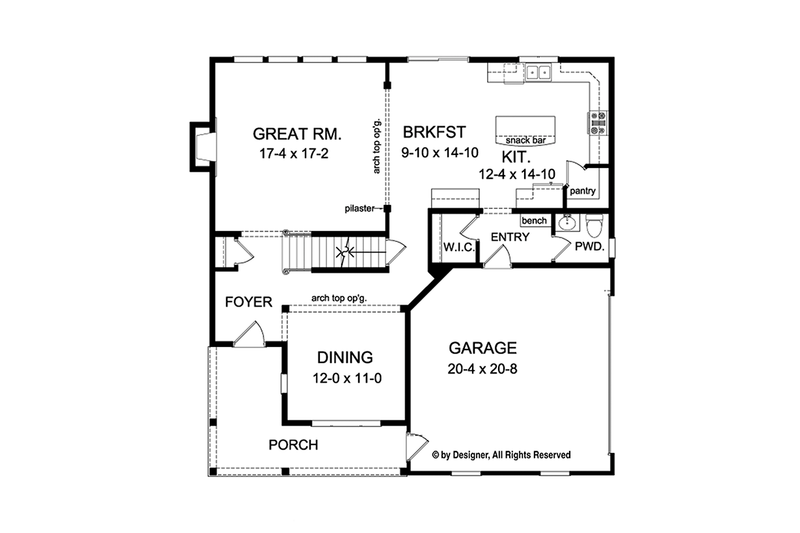

House Plan Design - Colonial Floor Plan - Main Floor Plan #1010-130

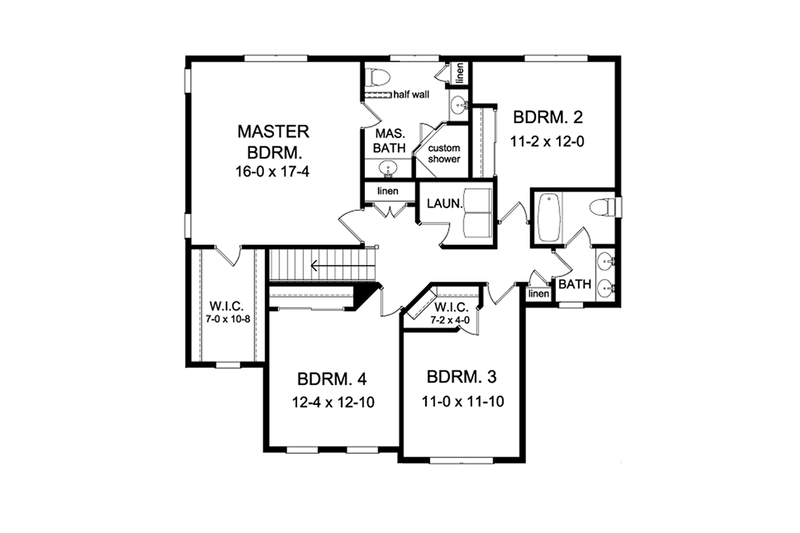

House Plan Design - Colonial Floor Plan - Upper Floor Plan #1010-130

Jump to:
All (6)
Exterior (4)
Floor plans (2)

Get Personalized Help

Home > Style > Colonial Home Plans

Key Specs

2511
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$75.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$100.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1850.00

Also order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1010-130

Home > Style > Colonial Home Plans

Key Specs

2511
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

Here's a charming Colonial-inspired design that fits on a compact lot and offers lots of modern touches. An inviting front porch and side-loading garage greatly enhance the front elevation. Inside, the first level is entirely devoted to living space with an open family area that flows from the great room through an arched opening into the breakfast area and the island kitchen (don't miss the handy snack bar and walk-in pantry here). A formal dining room for entertaining sits through another arched opening near the front. Upstairs, all four bedrooms enjoy easy access to the laundry room, and the master suite includes a large shower.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 42' 4"

Height : 34'

Width : 41'

Area

Basement Unfinished: 1150 sq/ft

First Floor: 1150 sq/ft height 9'

Garage: 441 sq/ft

Second Floor: 1361 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Combination Truss/Conventional

Roof Type : Asphalt

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Mud Room

Open Floor Plan

Upstairs Laundry

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Wrap Around Porch

Rooms

Bedroom 2:

134 sq/ft width 11' 2" x depth 12'

Bedroom 3:

130 sq/ft width 11' x depth 11' 10"

Bedroom 3 Closet:

29 sq/ft width 7' 2" x depth 4'

Bedroom 4:

158 sq/ft width 12' 4" x depth 12' 10"

Breakfast:

146 sq/ft width 9' 10" x depth 14' 10"

Covered Front Porch:

119 sq/ft

Dining Room:

132 sq/ft width 12' x depth 11'

Great Room:

298 sq/ft width 17' 4" x depth 17' 2"

Kitchen:

183 sq/ft width 12' 4" x depth 14' 10"

Master Bedroom:

277 sq/ft width 16' x depth 17' 4"

Master Closet:

75 sq/ft width 7' x depth 10' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
CAD Plans are in AutoDesk Architecture.

Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$1850.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1900.00

5 printed plan sets mailed to you.

CAD Set:
$3700.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set:
$1000.00

One printed set for bidding purposes only. Not a legal building set for construction.

Study Set:
$1000.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Additional Construction Sets:
$75.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$100.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
