PLAN 1016-40

Photographs may show modified designs.

House Plan Design - Colonial Exterior - Front Elevation Plan #1016-40

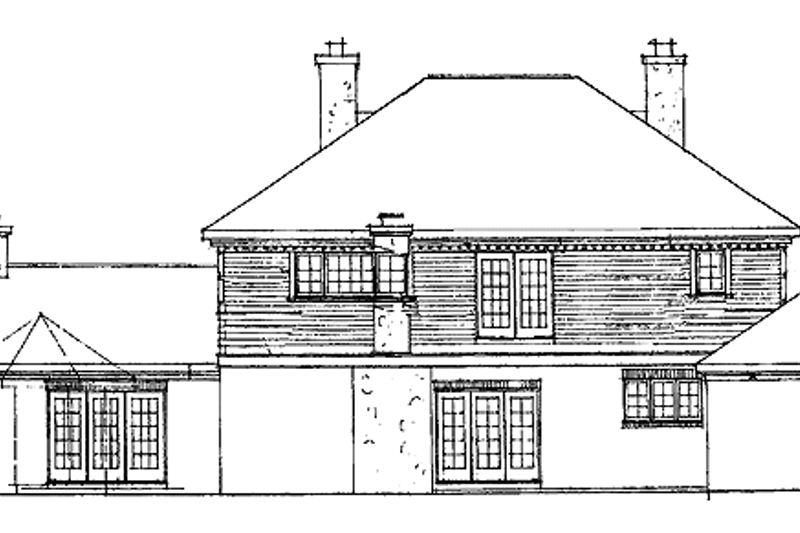

House Plan Design - Colonial Exterior - Rear Elevation Plan #1016-40

House Plan Design - Colonial Floor Plan - Main Floor Plan #1016-40

House Plan Design - Colonial Floor Plan - Upper Floor Plan #1016-40

House Plan Design - Colonial Floor Plan - Other Floor Plan #1016-40

Jump to:
All (5)
Exterior (2)
Floor plans (3)

Get Personalized Help

Home > Style > Colonial Home Plans

Key Specs

4151
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$60.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1320.00

Also order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1016-40

Home > Style > Colonial Home Plans

Key Specs

4151
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

This gracious brick Georgian mansion will sit well in genteel neighborhoods everywhere. Its many authentic details include a dentiled roofline, a ram's-head pediment over the front door, stone quoins and symmetrically arranged windows. The entry foyer opens to the living and dining rooms and the very formal stair hall. Note the double access to the stair, making it convenient to the informal morning room and central to the other areas as well. The sunken family room has plenty of space for entertaining guests or for informal lounging. A focal-point fireplace and access to the terrace add to its appeal. The family chef will appreciate the kitchen, with its large work island and nearby walk-in pantry. Note the huge master suite, with a sitting room, twin walk-in closets, terrace access and even an optional mini-kitchen and eating area. The second floor contains a guest suite with a walk-in closet and a private bath. Two more bedrooms, a full hall bath and a large walk-on deck complete the plan.

Floor Plans

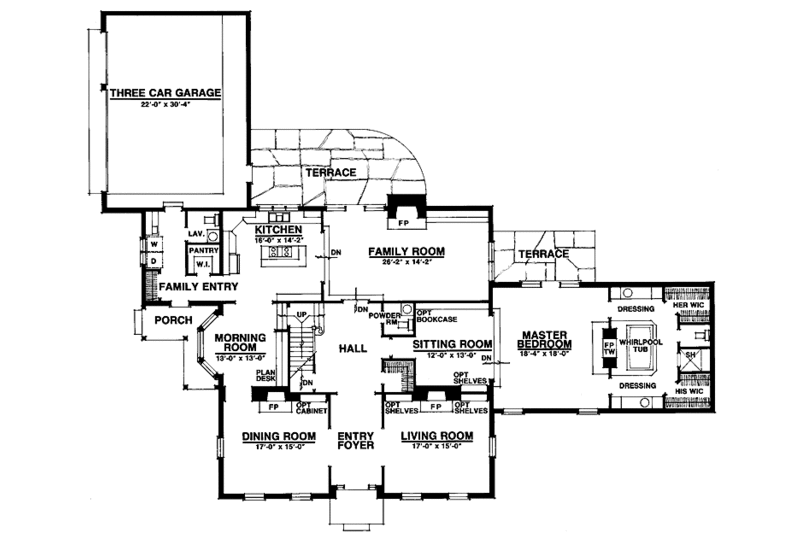

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

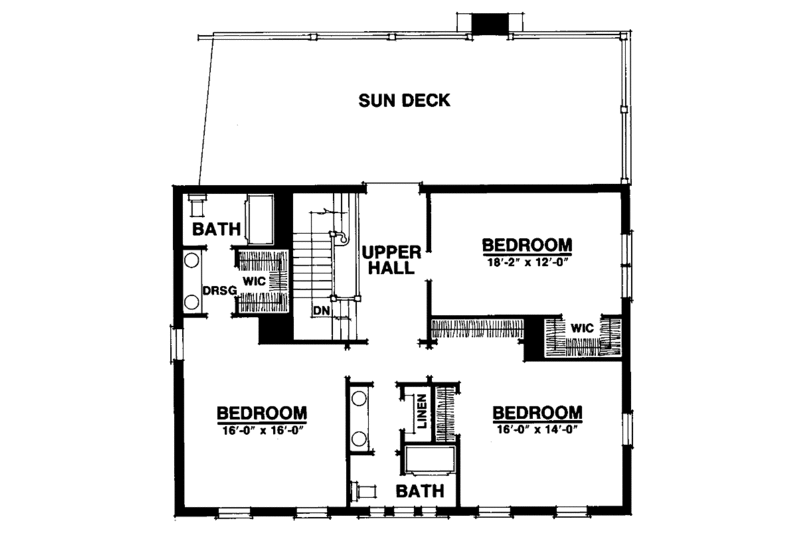

Floor Plan - Upper Floor

Reverse

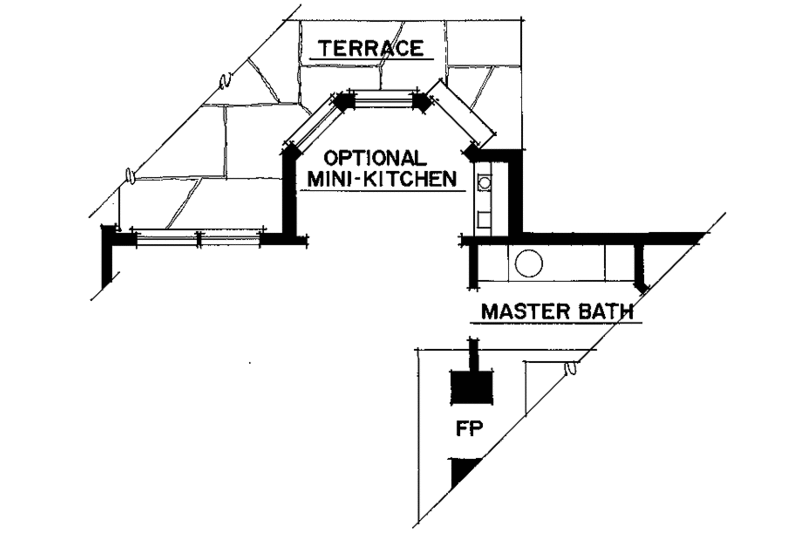

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 76' 7"

Height : 31'

Width : 95' 6"

Area

First Floor: 2843 sq/ft

Second Floor: 1308 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Combination Truss/Conventional

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Additional Room Features

Family Room Keeping Room

Rooms

3rd BR Closet:

18 sq/ft width 9' x depth 2'

Attic:

364 sq/ft width 26' x depth 14'

Bathroom 2:

50 sq/ft width 10' x depth 5'

Bedroom 2:

263 sq/ft width 15' 6" x depth 17'

Bedroom 2 Closet:

28 sq/ft width 4' 10" x depth 6'

Bedroom 3:

214 sq/ft width 15' 6" x depth 13' 10"

Bedroom 3 Closet:

28 sq/ft width 4' 10" x depth 6'

Bedroom 4:

211 sq/ft width 18' 2" x depth 11' 8"

Bedroom 4 Closet:

26 sq/ft width 7' 4" x depth 3' 8"

Breakfast Room:

132 sq/ft width 10' 2" x depth 13'

Dining Room:

239 sq/ft width 16' 6" x depth 14' 6"

Foyer:

113 sq/ft width 8' x depth 14' 2"

Garage:

660 sq/ft width 22' x depth 30'

Gathering Room:

364 sq/ft width 25' 9" x depth 14' 2"

Hall:

148 sq/ft width 10' 7" x depth 14'

Hall Bathroom:

60 sq/ft width 10' x depth 6'

Hall Closet:

23 sq/ft width 4' 8" x depth 5'

Kitchen:

219 sq/ft width 15' 6" x depth 14' 2"

Living Room:

239 sq/ft width 16' 6" x depth 14' 6"

Master Bathroom:

197 sq/ft width 10' 5" x depth 19'

Master Bedroom:

348 sq/ft width 18' 4" x depth 19'

Master Closet:

38 sq/ft width 7' x depth 5' 6"

Powder Room:

23 sq/ft width 4' 8" x depth 5'

Utility Room:

57 sq/ft width 6' x depth 9' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$1320.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$60.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
