PLAN 1060-121
Photographs may show modified designs.
- Jump to:
- All (12)
- Floor plans (1)
Get Personalized Help
Key Specs
421
sq ft
0
Beds
0
Baths
1
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1060-121
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
This traditional design floor plan is 421 sq ft and has 0 bedrooms and 0 bathrooms.
Floor Plans
Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 24'
Height : 16' 10"
Width : 42'
Area
Garage : 584 sq/ft
Main Floor : 421 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Tray Ceiling in Office Area
Garage Ceiling : 10'
Main Ceiling : 10'
Roof
Primary Pitch : 6/12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2 x 4
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Storage Area
Garage Features
Detached Garage
Front Entry Garage
Outdoor Spaces
Covered Front Porch
More
Economical To Build
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

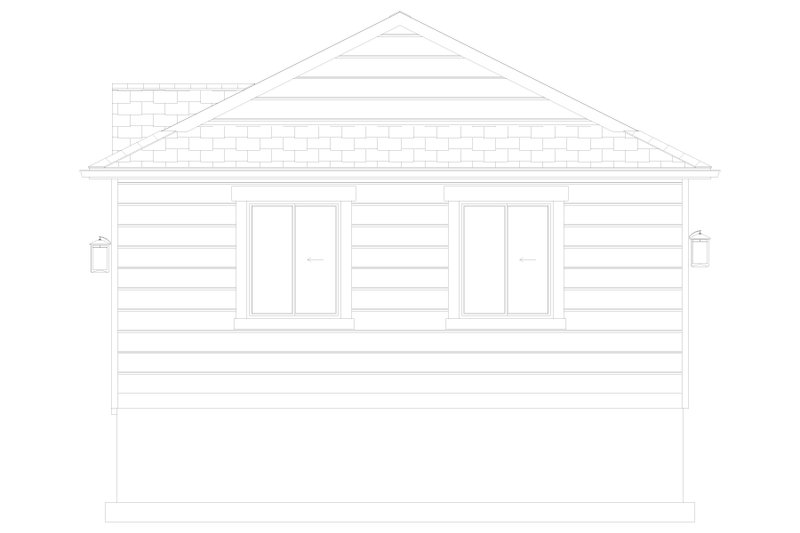

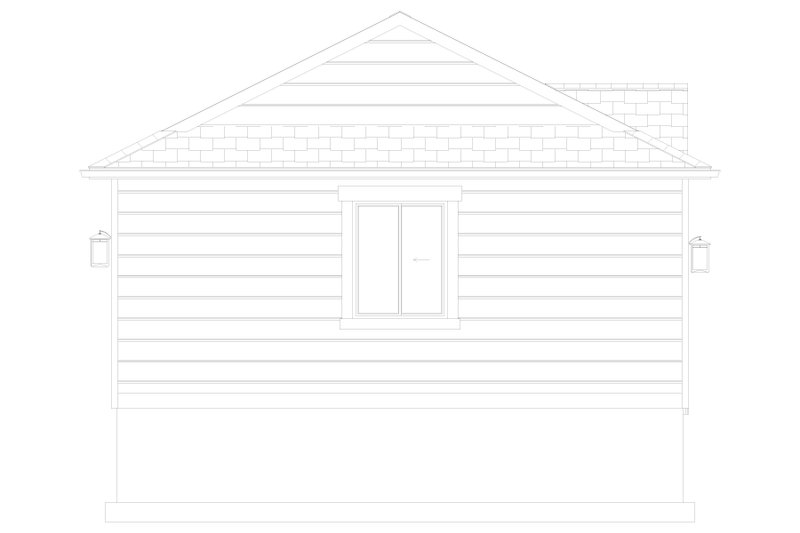

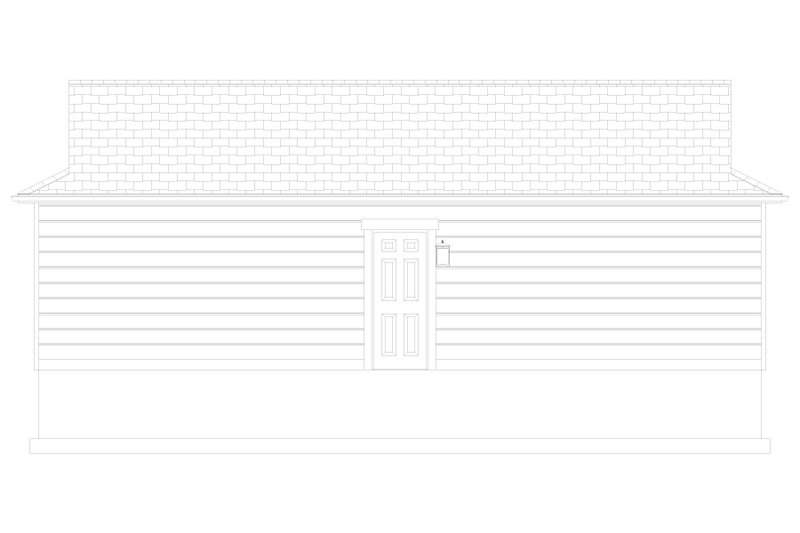

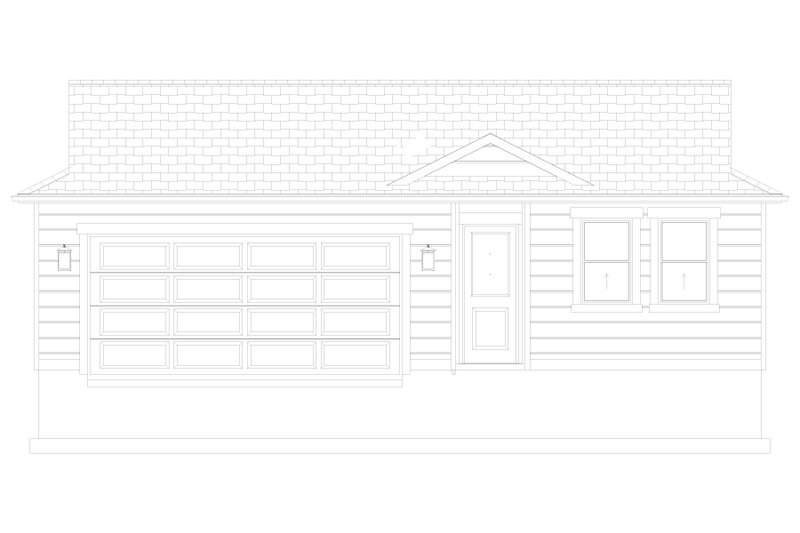

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
