PLAN 437-86
Photographs may show modified designs.
- Jump to:
- All (42)
- Floor plans (3)
Get Personalized Help
Key Specs
4366
sq ft
4
Beds
3.5
Baths
2
Floors
3
Garages
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 437-86
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

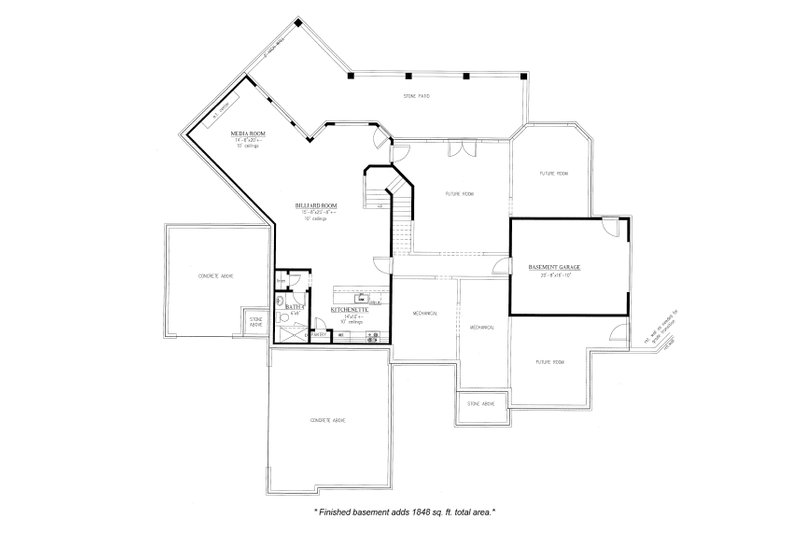

Floor Plan - Other Floor

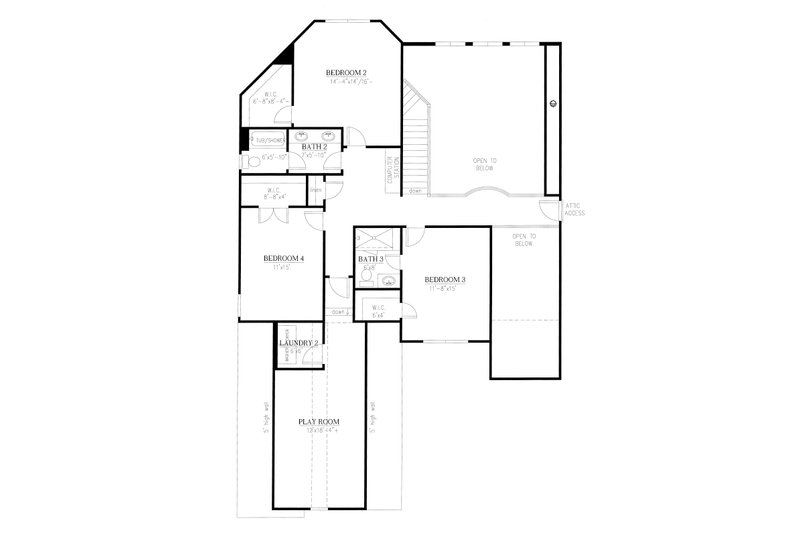

Floor Plan - Upper Floor

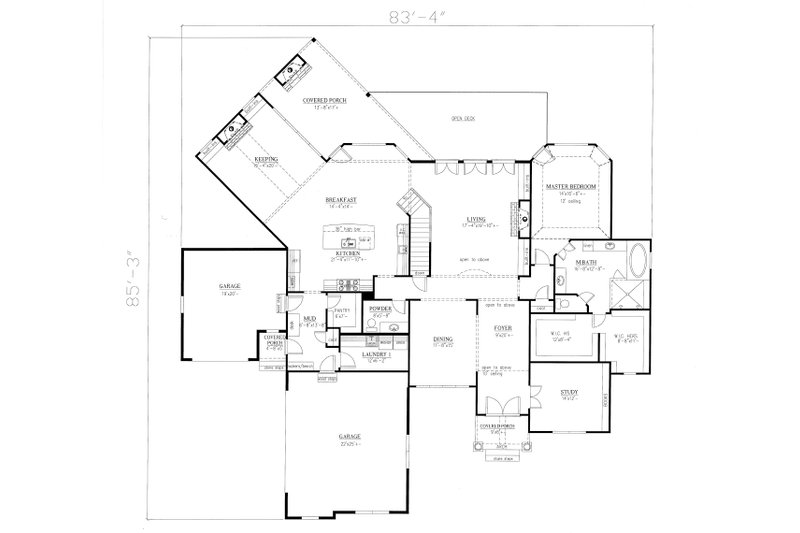

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 85' 3"
Height : 39' 6"
Width : 83' 4"
Area
Basement : 1848 sq/ft
Garage : 908 sq/ft
Main Floor : 2928 sq/ft
Porch : 370 sq/ft
Upper Floor : 1438 sq/ft
Ceiling
Ceiling Details : Two-story Living Room, vaulted Hearth Room, tray ceiling in Master bedroom
Main Ceiling : 10'
Upper Ceiling Ft : 10'
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/stone
Framing : 2 x 4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Play Flex Room
Upstairs Laundry
Garage Features
Front Entry Garage
Side Entry Garage
Split Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
What's Included In This Plan Set
Please note: This designer has the following the zip code restrictions: 30041, 30501, 30504, 30506, 30542, and 30566.
-
Exterior Elevations
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc). -
Floor Plan(s)
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out. -
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations. -
Roof Plan
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable. -
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design. -
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
Plan Set
$1550.00
$1750.00
Foundation
$0.00
Additional Options
$200.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
