PLAN 938-153
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description

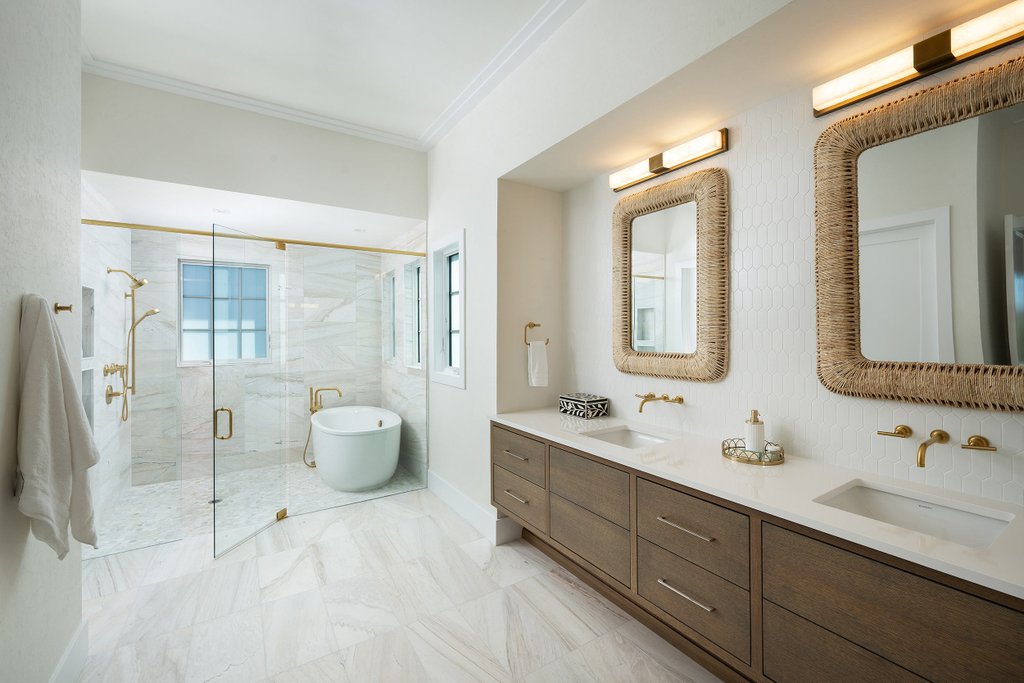

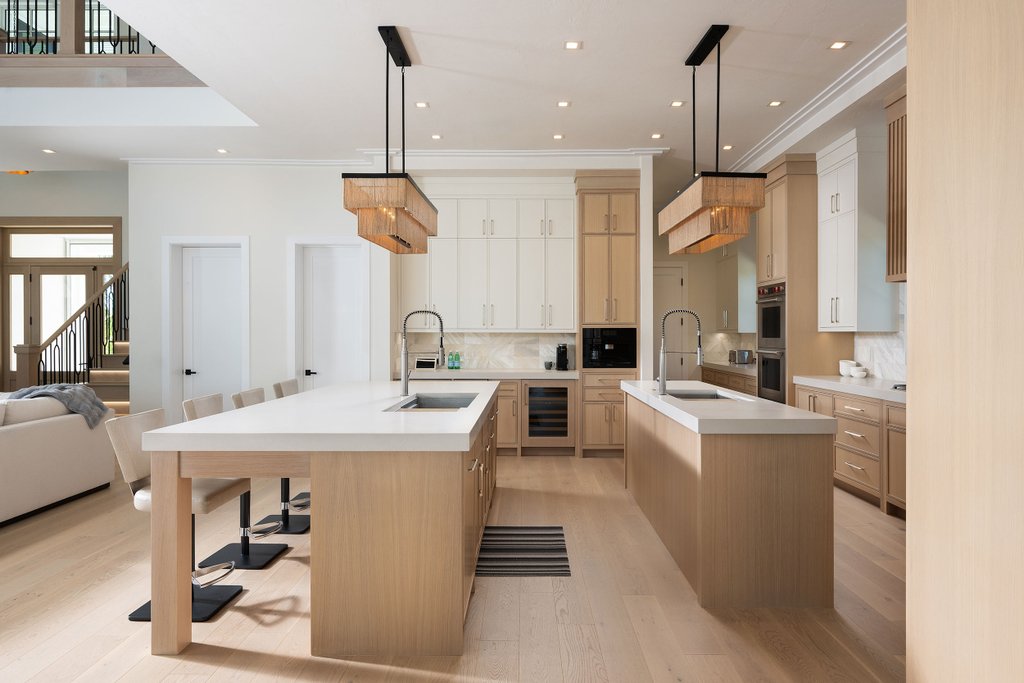

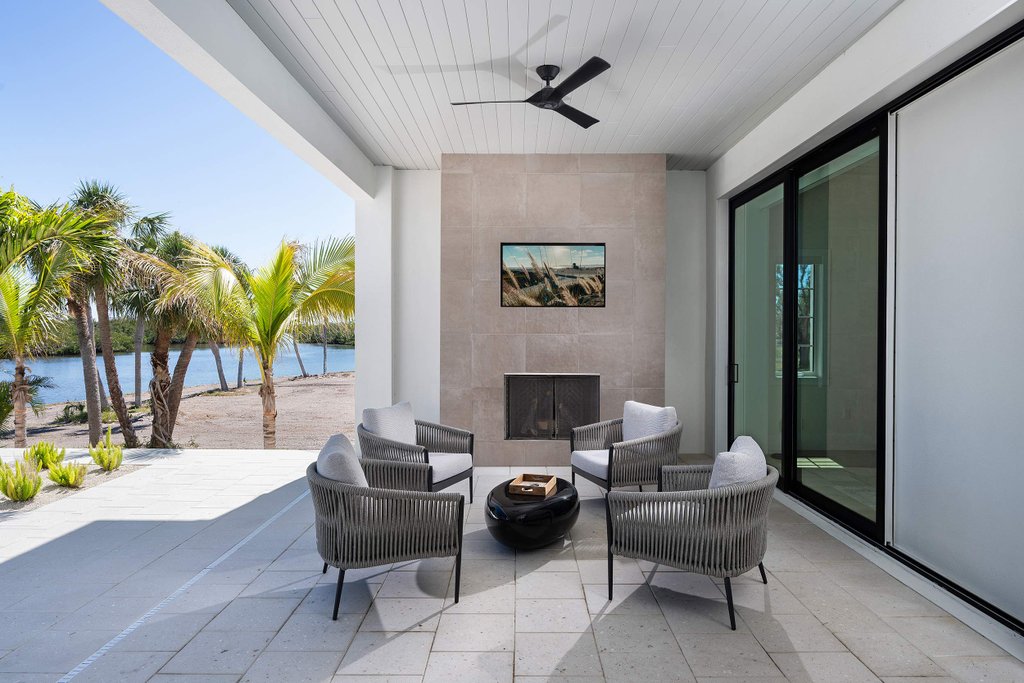

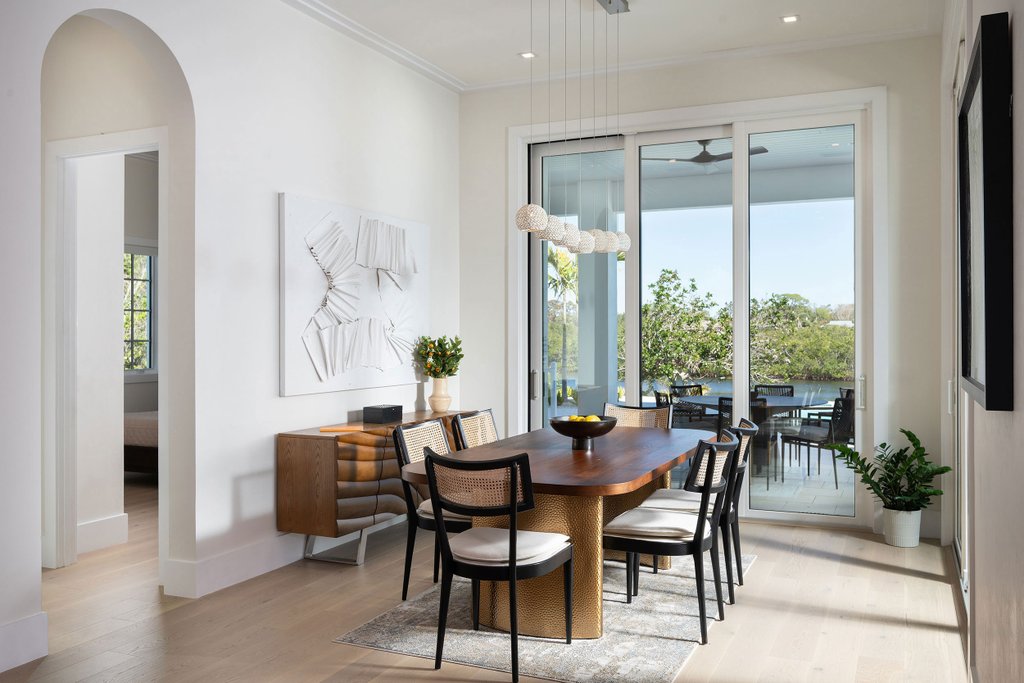

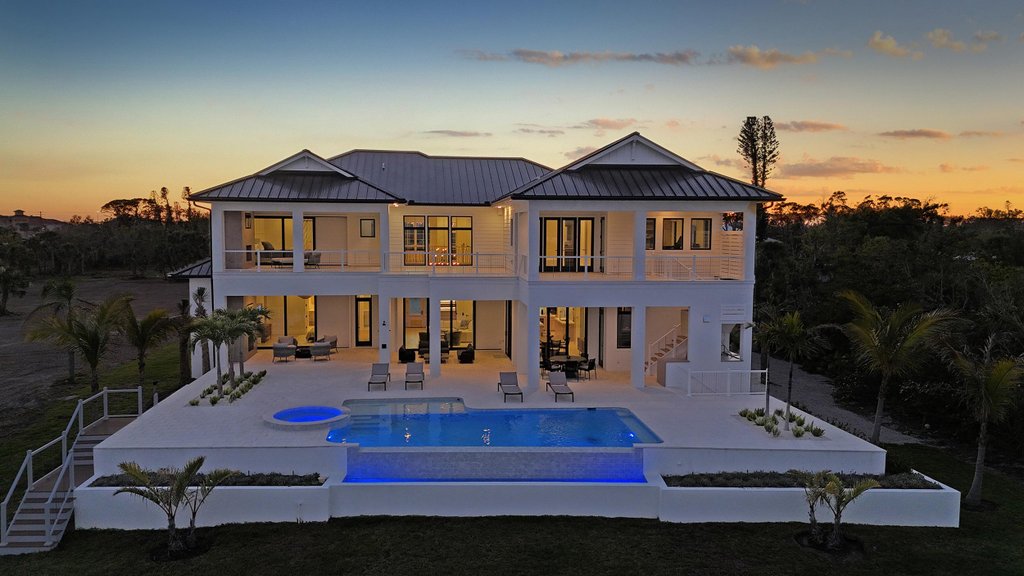

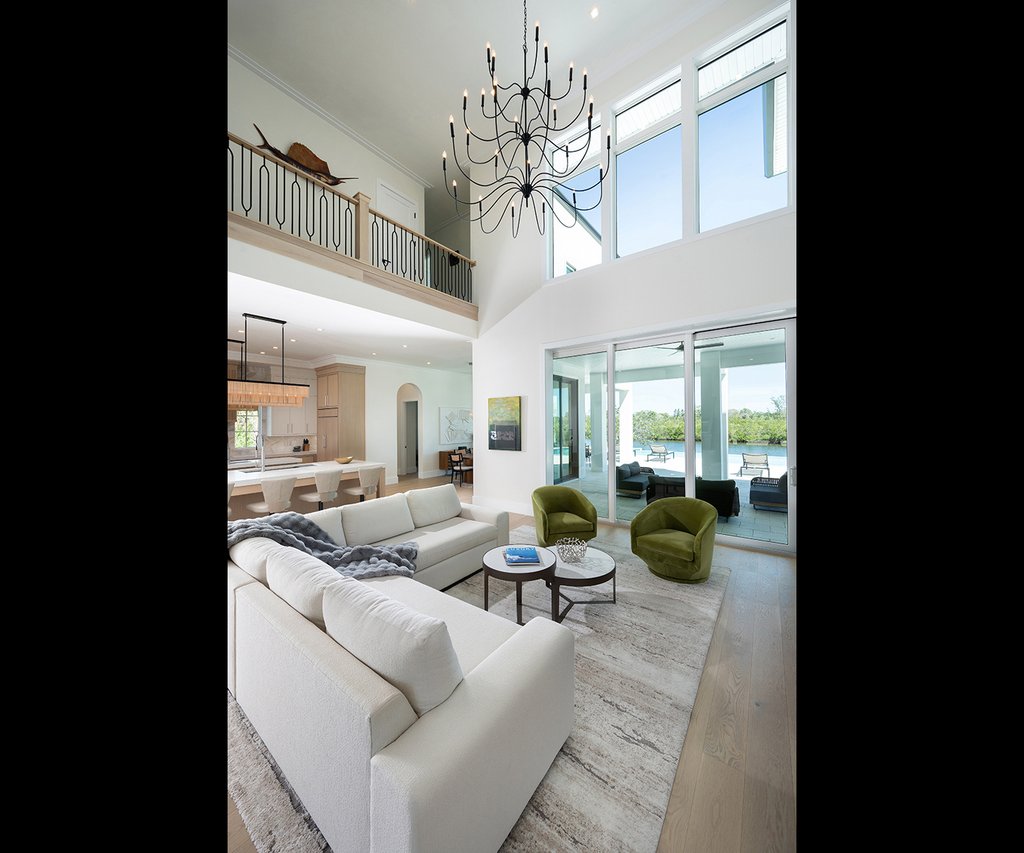

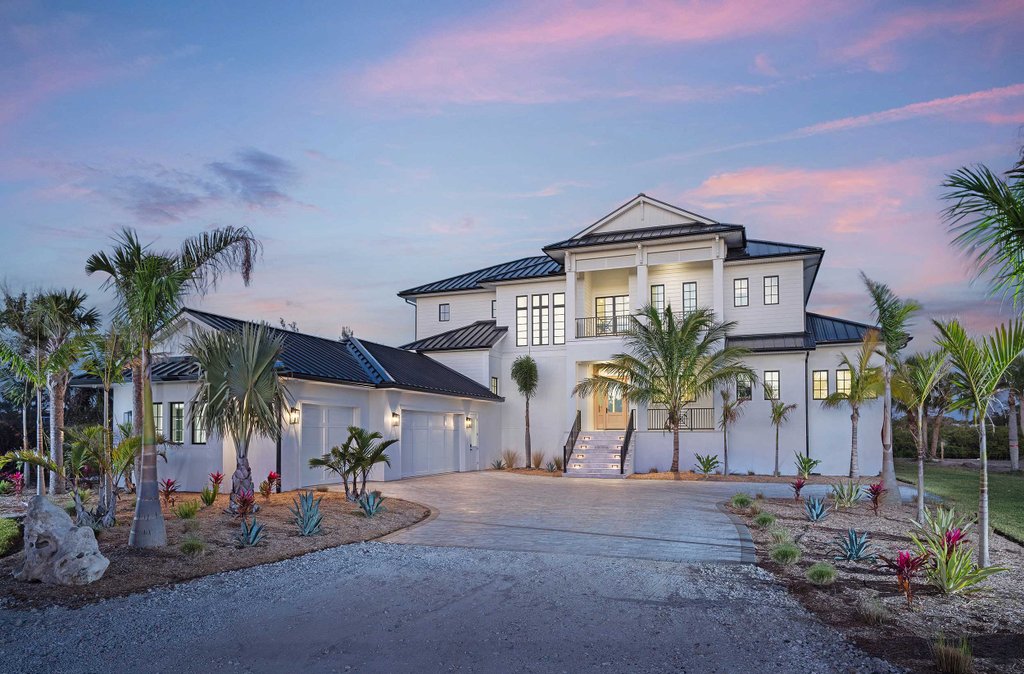

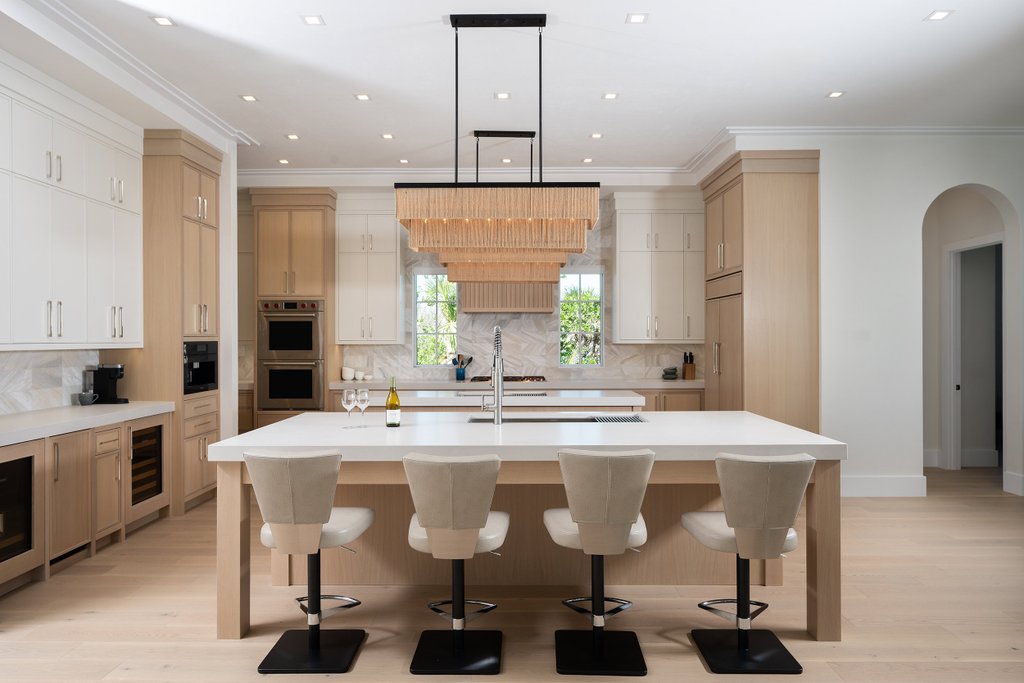

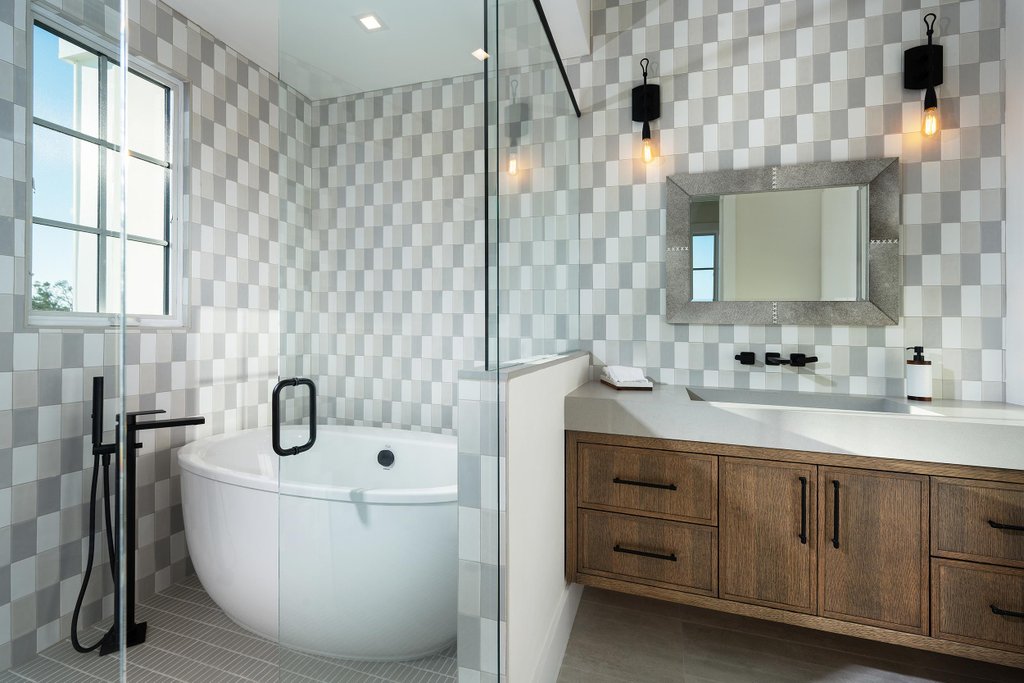

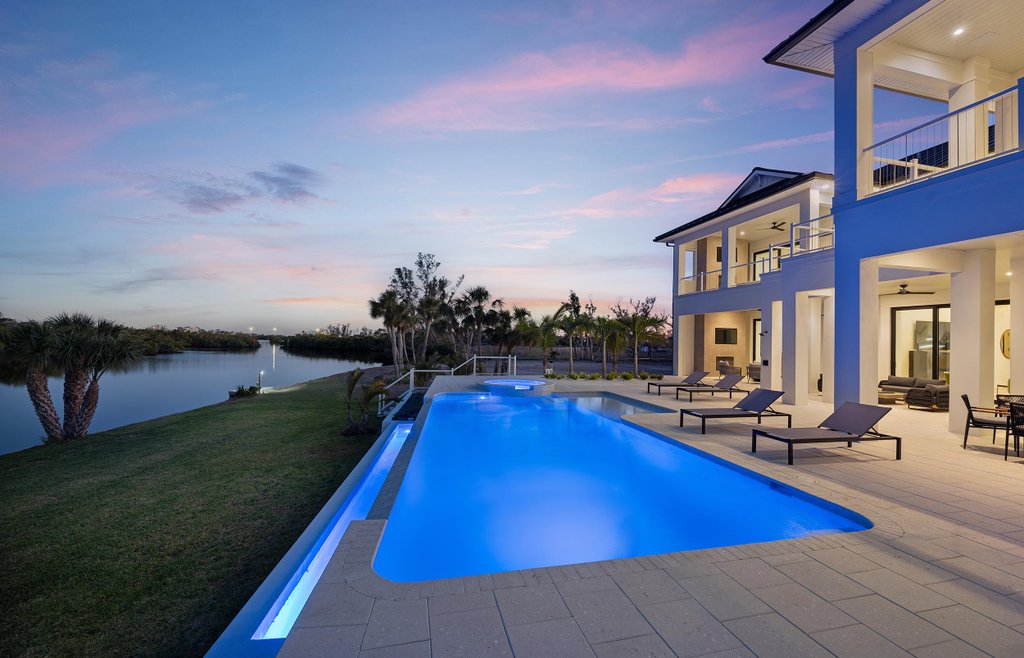

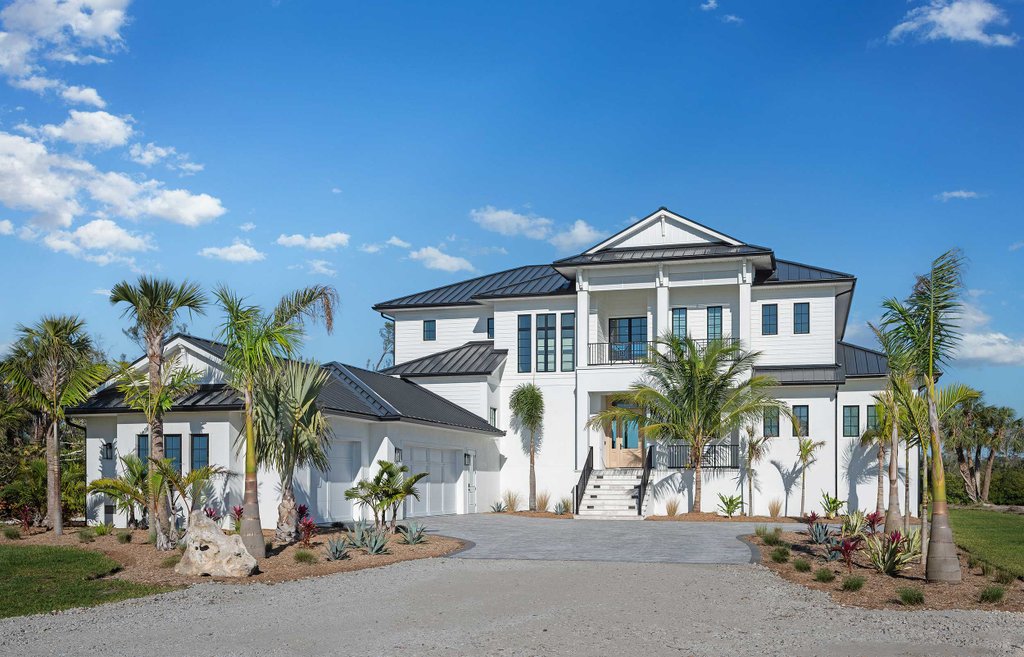

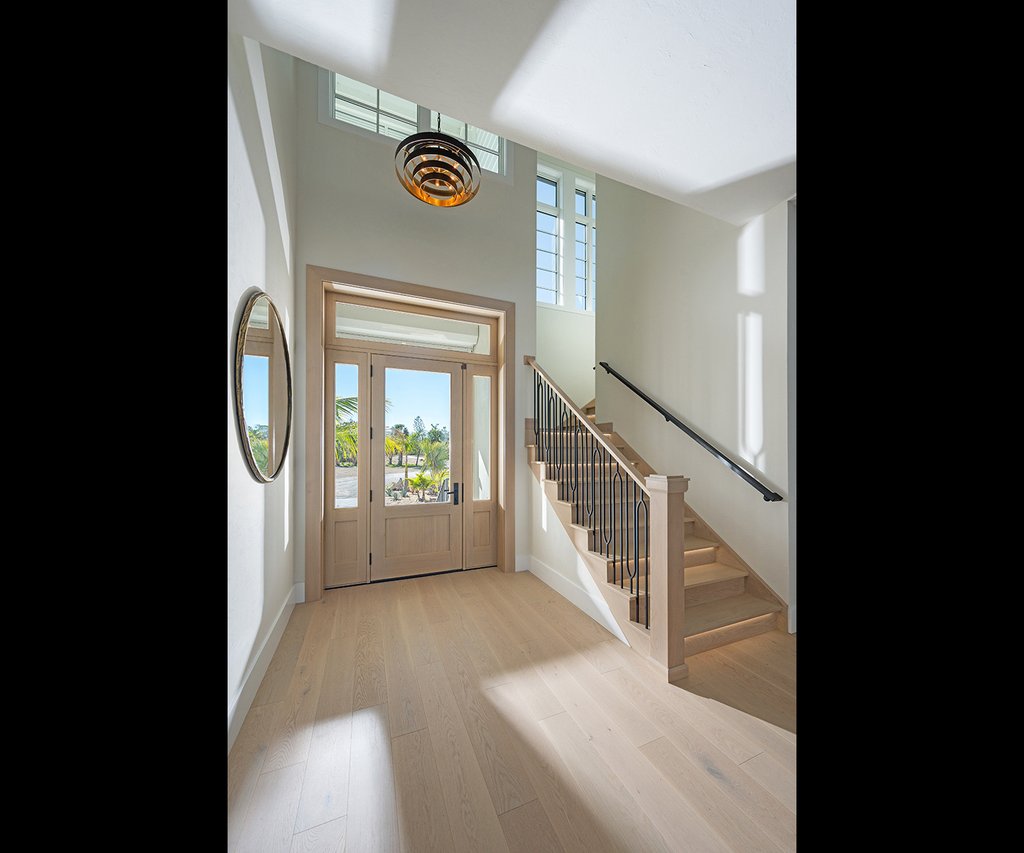

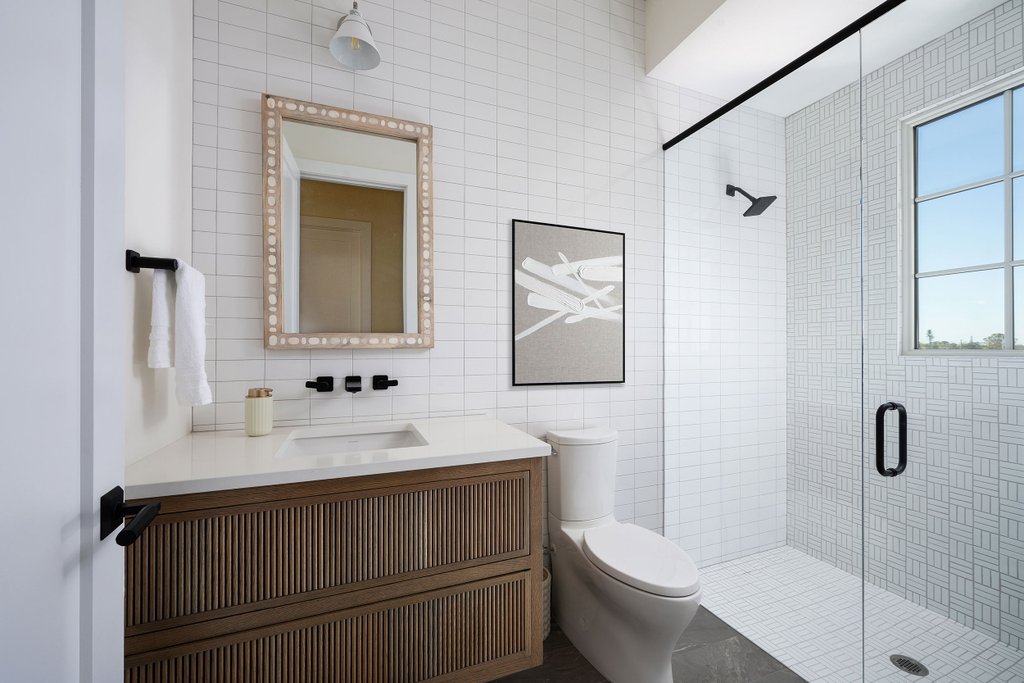

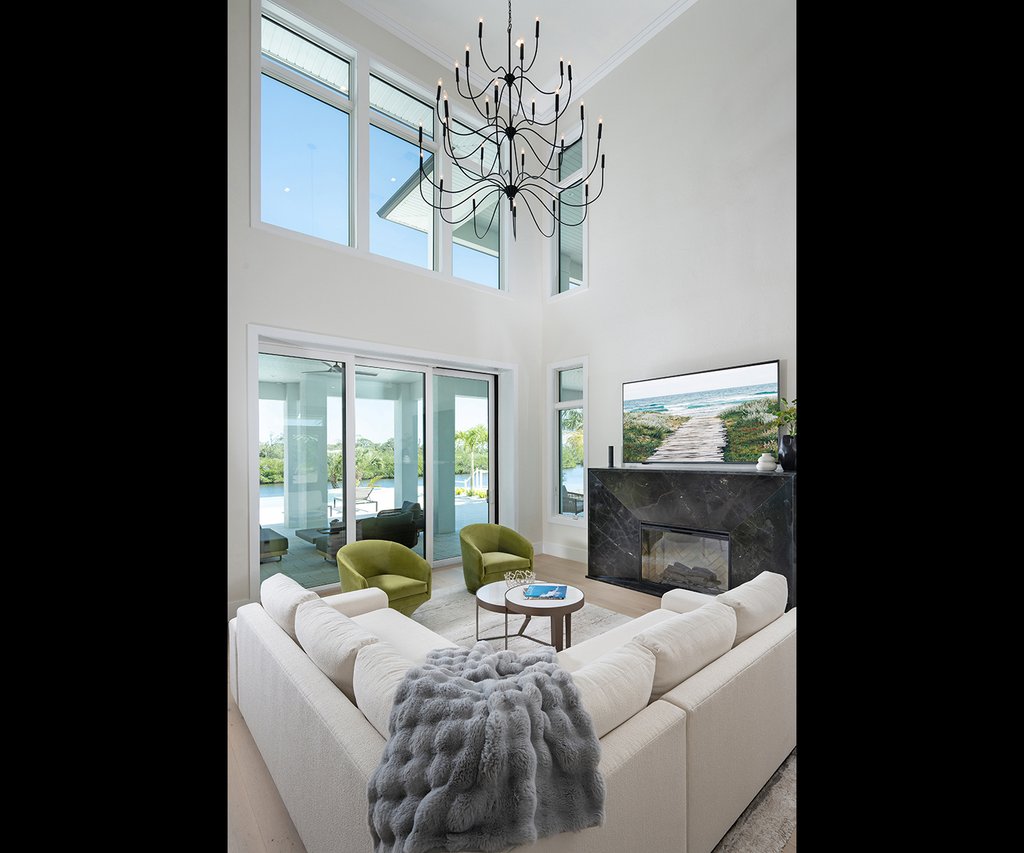

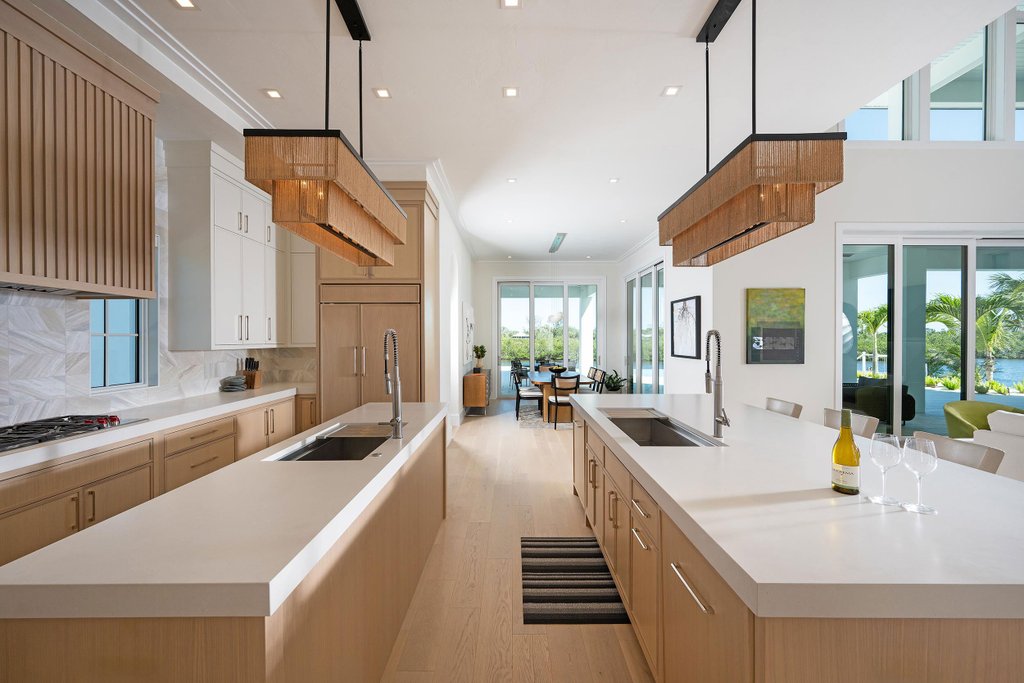

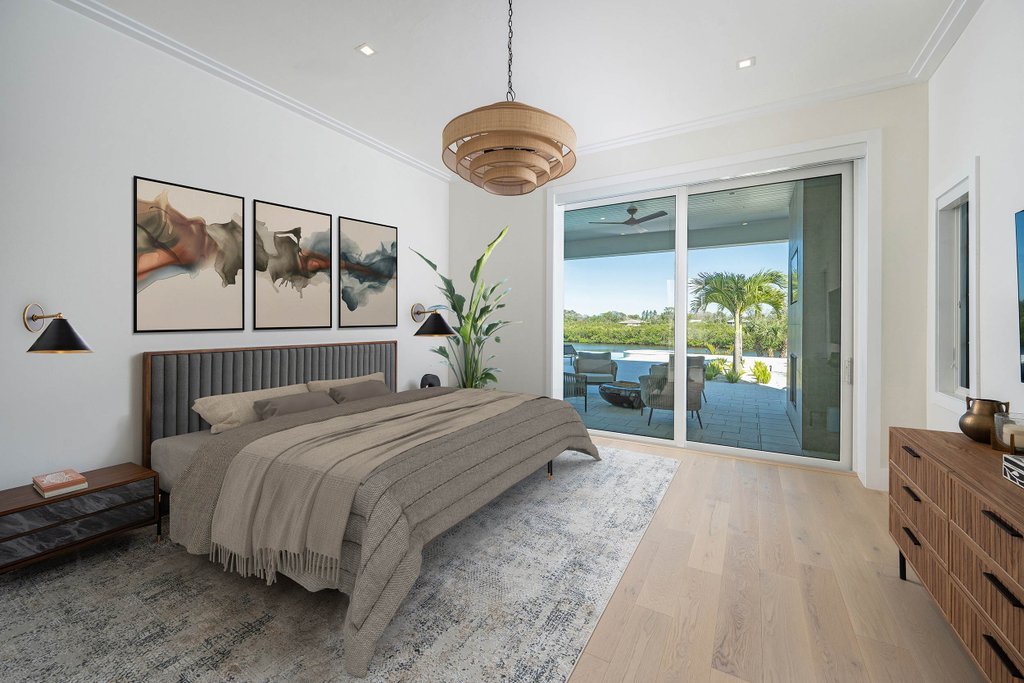

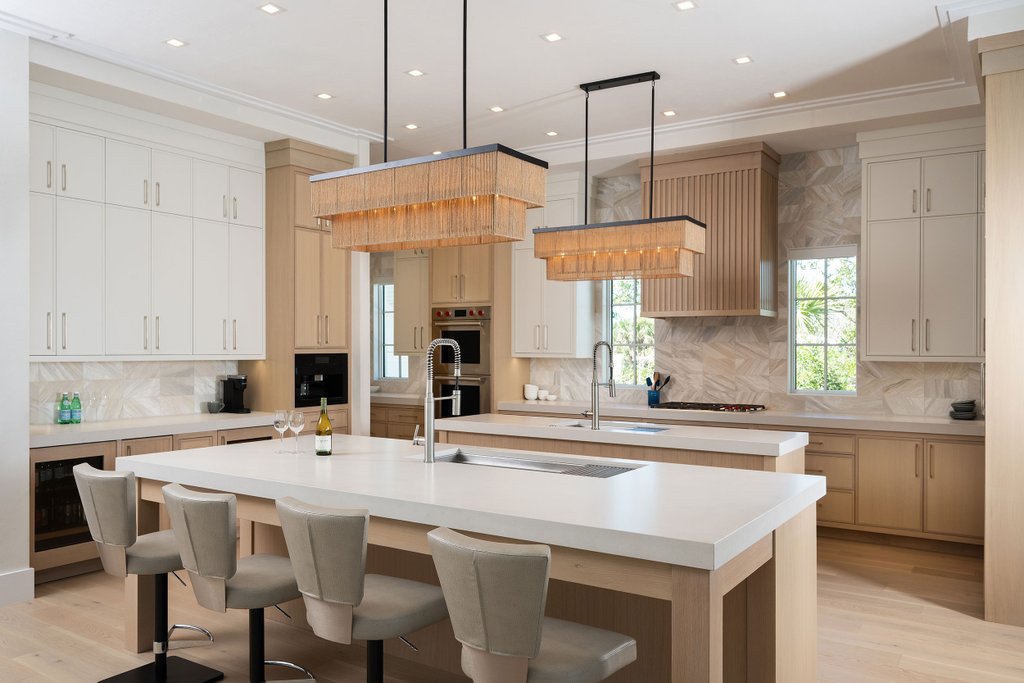

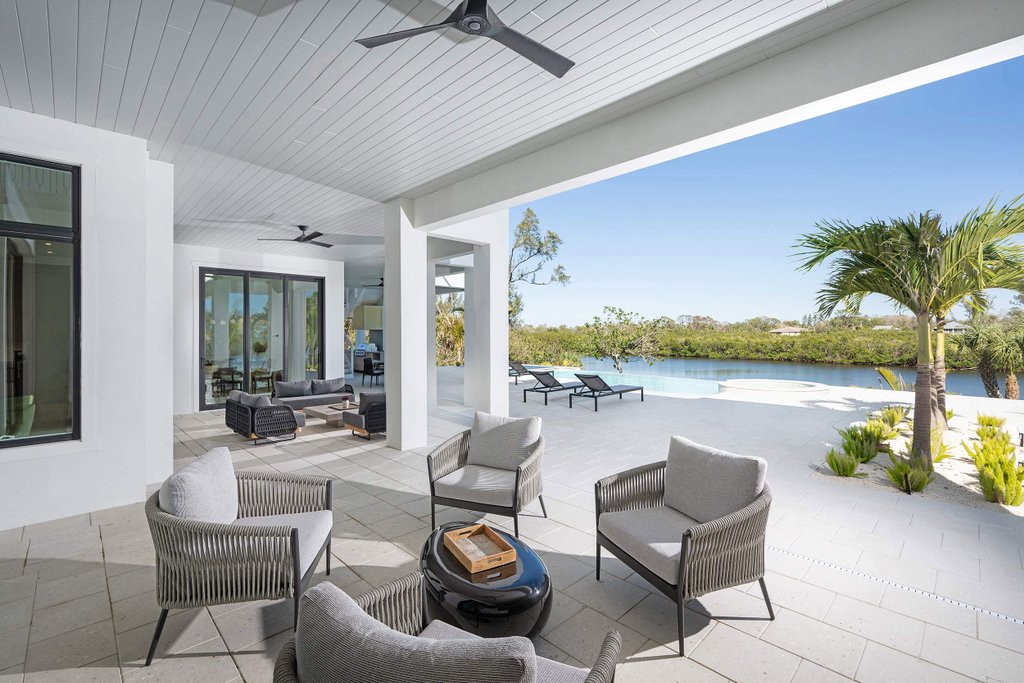

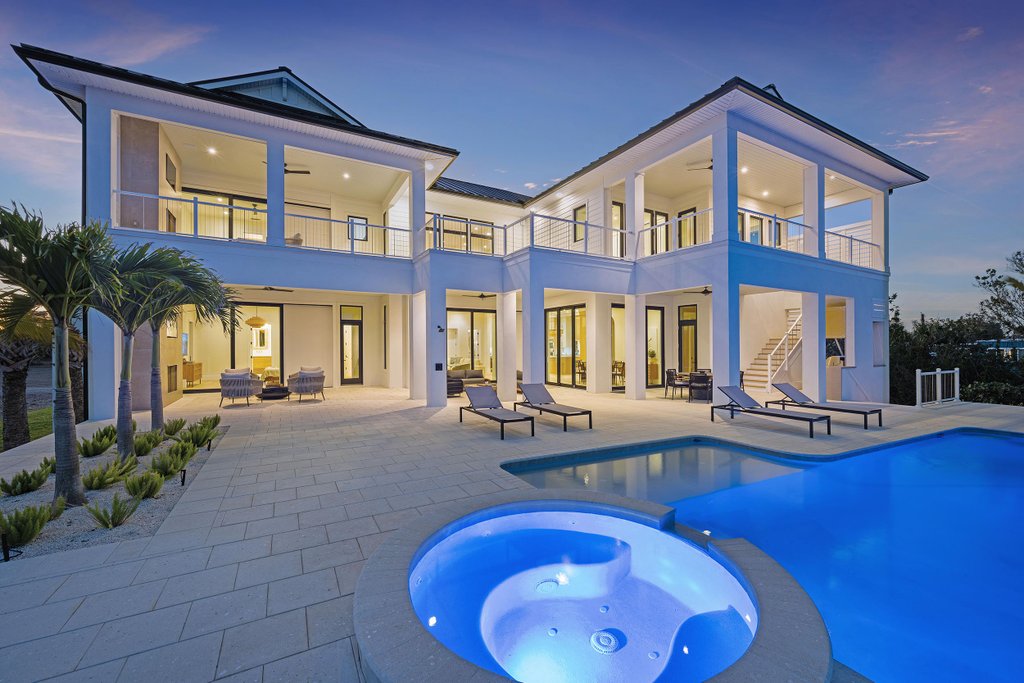

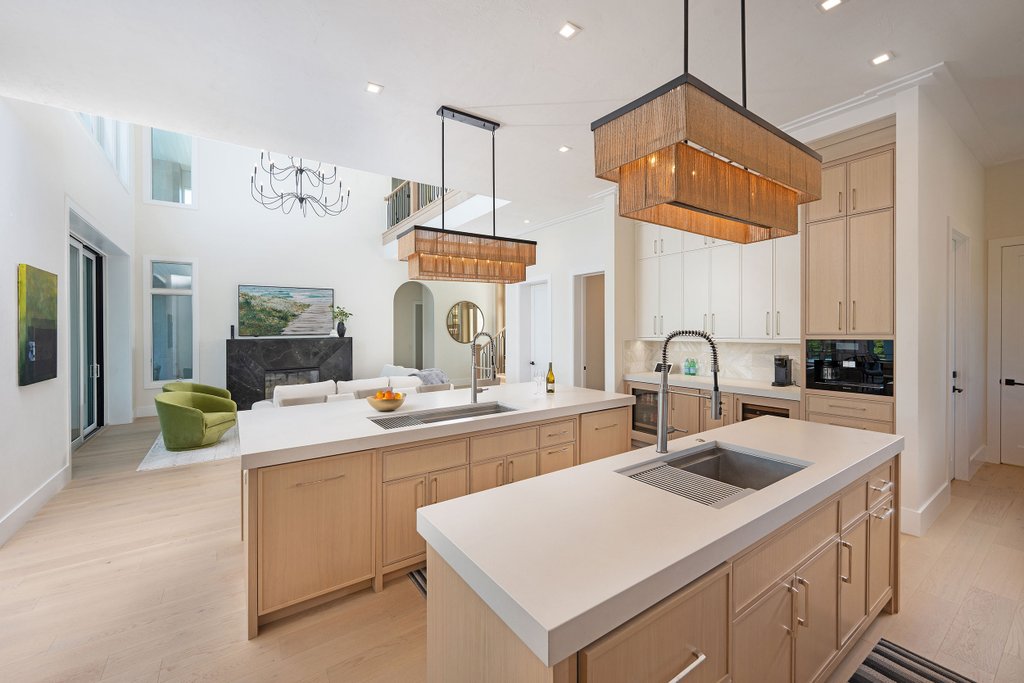

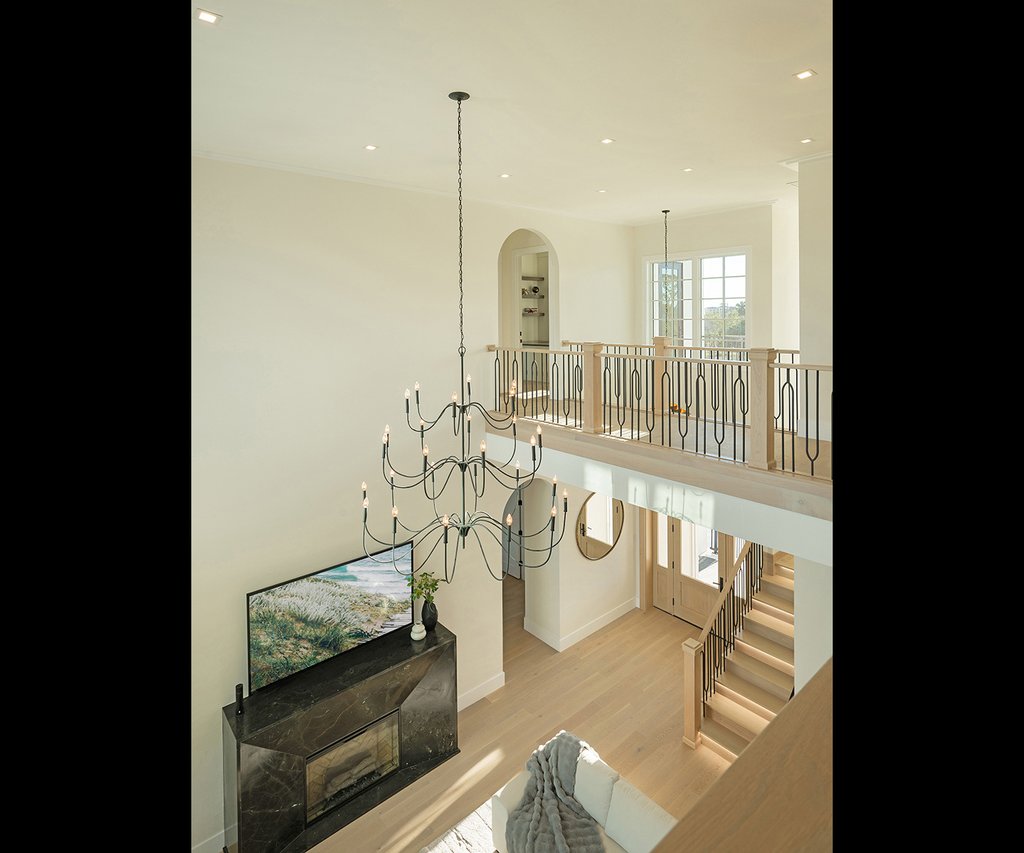

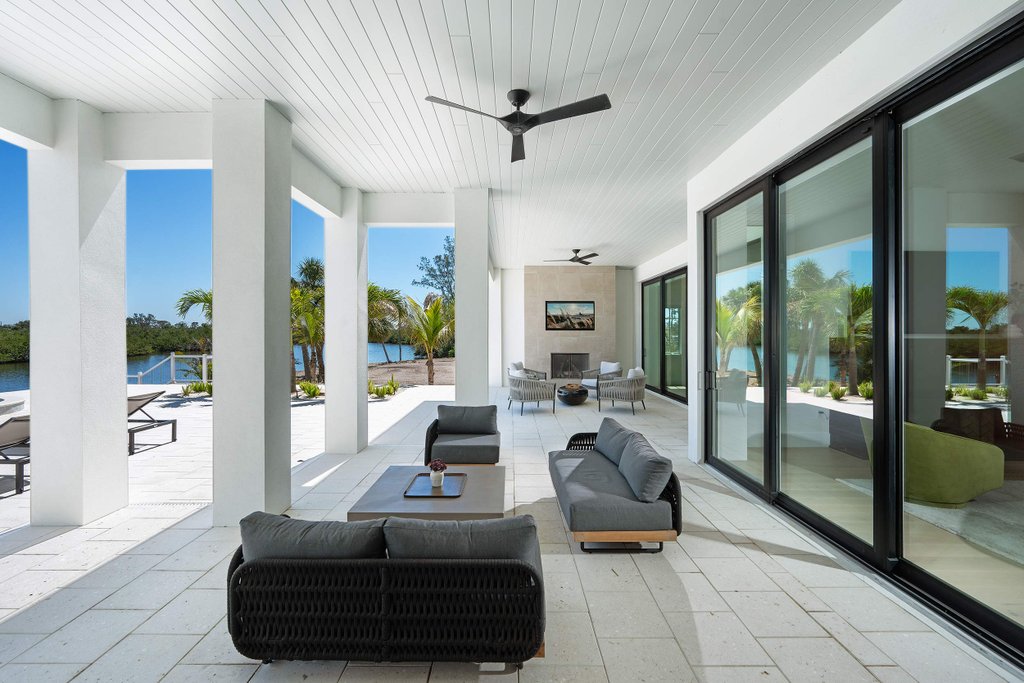

The Riverview is a Florida-style coastal home with a contemporary feel. Beautiful front and rear covered decks capture the ocean breezes. The elevated prominent entry is decked out with stately columns and railings. Topped with a single gable roof, with decorative brackets. The two-story foyer entry opens up to the generous great room with incredible views beyond the pocketing wall of glass doors. This gourmet kitchen has clear sight-lines to the Dining and Great Room. The double island and butler’s pantry make this kitchen a chef’s delight. Perfect for grand entertaining the main public rooms open up to the rear decks. The outdoor kitchen leaves plenty of room for alfresco dining and evenings beside the fireplace. The main floor Main is secluded from the public spaces with a private entrance just off the foyer. A spacious Master Bath offers split vanities, a walk-in shower and a stand alone tub. The wardrobe is extra large with a pocket door directly off the bedroom. A guest suite, a pool bath and a laundry room round off the remaining first floor. The stairs/elevator lands on the bridge of the second floor with views below of the great room and foyer. The second floor main suite is secluded to one side with an office that opens up to a front balcony. The Main Bedroom opens to its own private balcony. The other side of the upper floor offers two guest suites each with its own bath and a spacious Media Room that opens to a covered balcony. There is also a laundry room on this floor. The expansive garage holds: 3 cars, 2 golf carts, lots of room for recreational vehicles, with extra room for storage and a workbench.
Floor Plans
Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 116' 6"
Height : 39' 3"
Width : 80' 6"
Area
Garage : 1222 sq/ft
Main Floor : 2673 sq/ft
Patios : 1033 sq/ft
Upper Floor : 1900 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 22' Ceiling in Great Room
Main Ceiling : 10'
Upper Ceiling Ft : 10'
Roof
Primary Pitch : 6/12
Roof Framing : Truss
Roof Type : Gable
Exterior Wall Framing
Exterior Wall Finish : siding/stucco
Framing : 2x6
Bedroom Features
2 Master Suites
Guest Suite
Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Main Floor Laundry

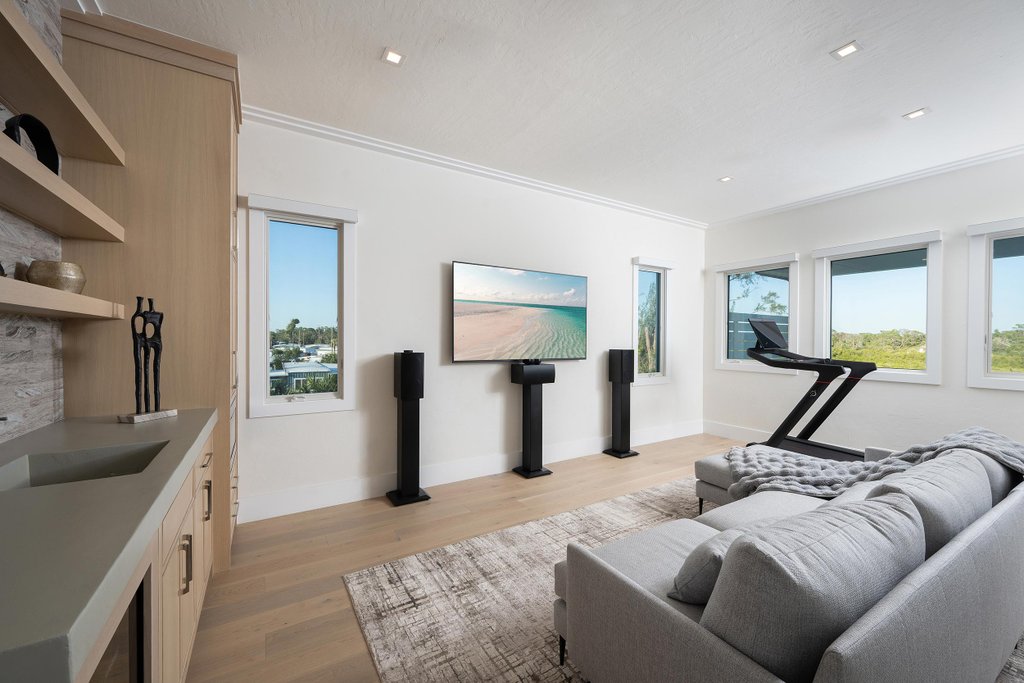

Media Room
Mud Room
Storage Area
Upstairs Laundry
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Balcony
Courtyard
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
More
Economical To Build
Elevator
Empty Nester
Suited For Vacation Home
Two Family Home
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
- Cover Sheet
- The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
-
Wall Sections
- The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
-
Foundation Plan
- The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
-
Second floor framing (where appropriate)
- The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
-
Floor Plans
- The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
-
Roof Plan & Soffit (Chase Layout) Plan
- The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
-
Reflected Ceiling Plan
- The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
-
Exterior Elevations
- The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
-
Cross Section & Interior Elevations
- The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.
-
Electrical Plan
- The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$2995.00
$2995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$3495.00
$3495.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Stem Wall Foundation:
$0.00
$0.00
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.
Framing
Concrete Masonry Unit and Wood 2x6:
$0.00
$0.00
CMU on Main Floor and Wood 2x6 Upper level(s)
Additional Options
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
