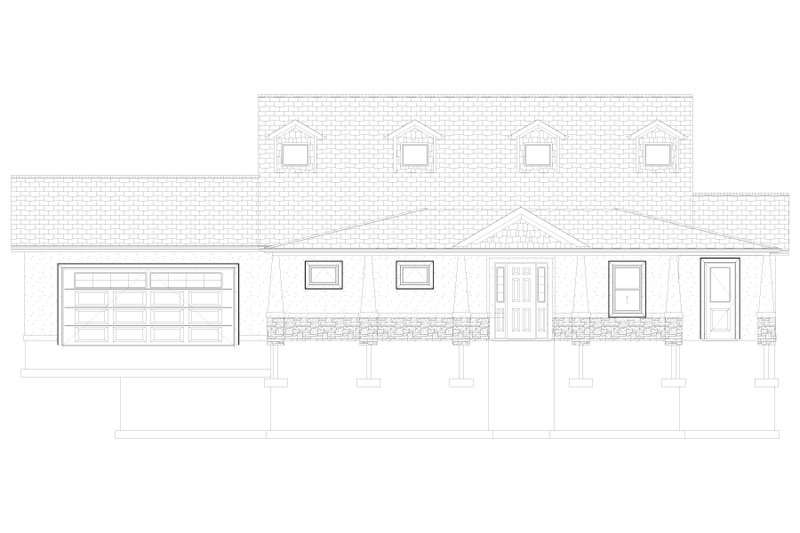

House Plan Design - Craftsman Exterior - Front Elevation Plan #1060-70

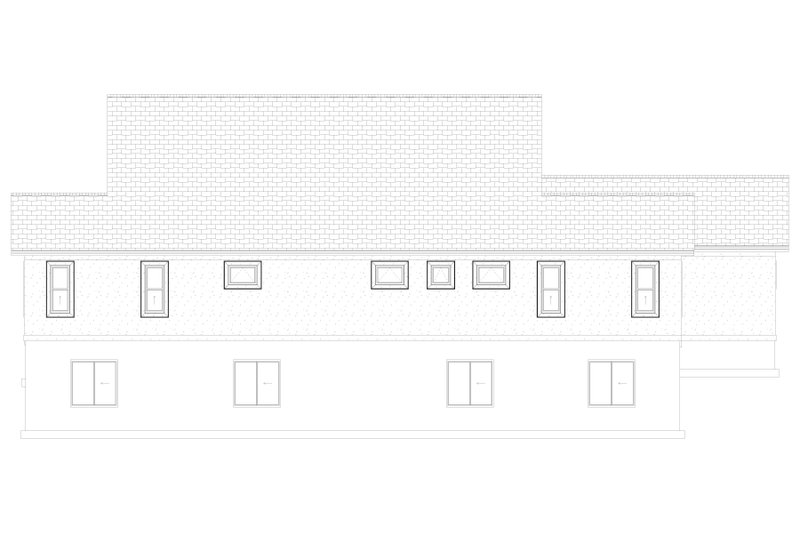

House Plan Design - Craftsman Exterior - Rear Elevation Plan #1060-70

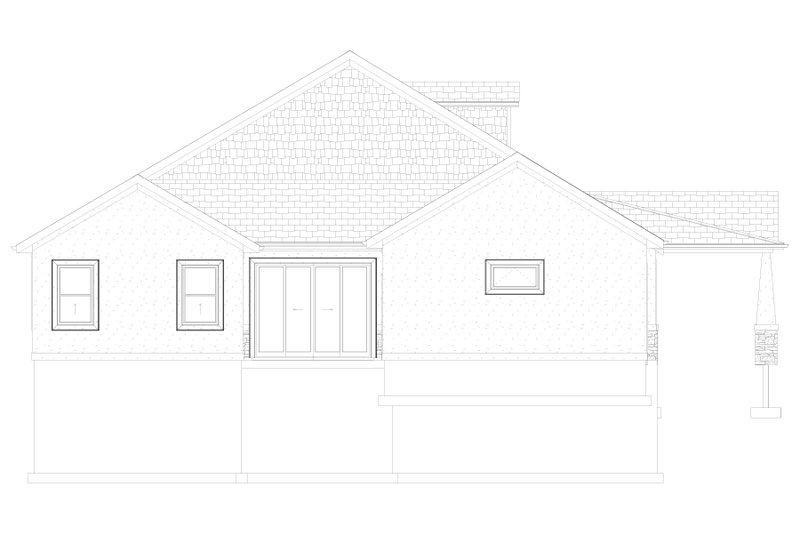

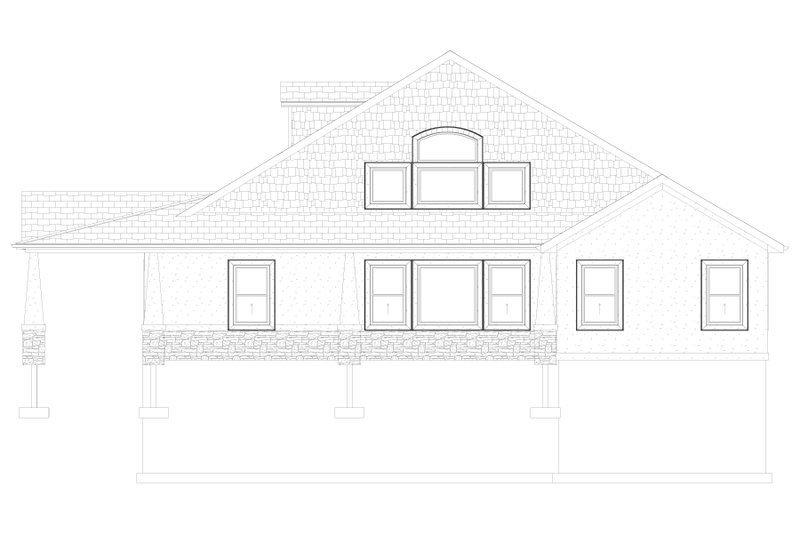

House Plan Design - Craftsman Exterior - Other Elevation Plan #1060-70

House Plan Design - Craftsman Exterior - Covered Porch Plan #1060-70

House Plan Design - Craftsman Exterior - Outdoor Living Plan #1060-70

House Plan Design - Craftsman Interior - Family Room Plan #1060-70

House Plan Design - Craftsman Interior - Dining Room Plan #1060-70

House Plan Design - Craftsman Interior - Kitchen Plan #1060-70

House Plan Design - Craftsman Interior - Master Bedroom Plan #1060-70

House Plan Design - Craftsman Interior - Master Bathroom Plan #1060-70

House Plan Design - Craftsman Interior - Laundry Plan #1060-70

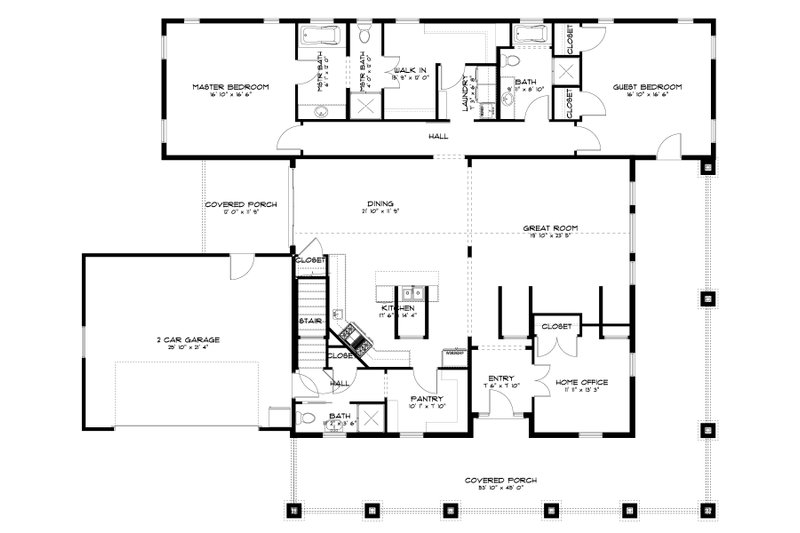

House Plan Design - Craftsman Floor Plan - Main Floor Plan #1060-70

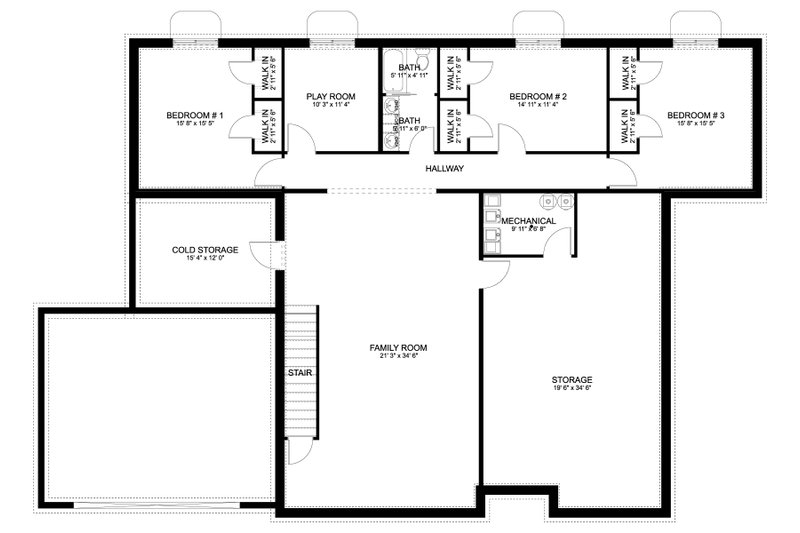

House Plan Design - Craftsman Floor Plan - Lower Floor Plan #1060-70

Jump to:
All (29)
Exterior (12)
Interior (15)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman Home Plans

Key Specs

5620
sq ft

5
Beds

2.5
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$156.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$20.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$132.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$396.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$132.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1080.00

You save $270.00 (20% savings)

Sale ends soon!

Also order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1060-70

Home > Style > Craftsman Home Plans

Key Specs

5620
sq ft

5
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

This craftsman design floor plan is 5620 sq ft and has 5 bedrooms and 2.5 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth : 52' 6"

Height : 26' 1"

Width : 79' 4"

Area

Basement : 2915 sq/ft

Garage : 577 sq/ft

Main Floor : 2705 sq/ft

Porch : 1098 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 9'

Lower Ceiling : 8'

Main Ceiling : 9'

Roof

Primary Pitch : 7/12

Roof Framing : Truss

Secondary Pitch : 3/12

Exterior Wall Framing

Framing : 2 X 6

Bedroom Features

Guest Suite

Lower Level Bedrooms

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Exercise Room

Family Room Keeping Room

Great Room Living Room

Hobby Rec Room Game Room

Main Floor Laundry

Storage Area

Unfinished Future Space

Garage Features

Front Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Wrap Around Porch

Empty Nester

Wheelchair Adaptable

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$1080.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1196.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1320.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Unlimited Build:
$1516.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set:
$1640.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$280.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement:
$280.00

Ideal for sloping lot, lower level of home partially underground.

Monolithic Slab:
$280.00

A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.

Partial Basement:
$280.00

Ideal for builds where a full basement is not necessary or site conditions don’t allow for excavation. Typically combined with a slab or crawlspace.

Slab:
$280.00

Ideal for level lot, single layer concrete poured directly on grade.

Walk Out Basement:
$280.00

Ideal for a sloping lot, lower level with outdoor access.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Wood 2x4:
$200.00

Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$156.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$20.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$132.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$396.00

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$132.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
