PLAN 137-368
Photographs may show modified designs.
- Jump to:
- All (6)
- Floor plans (2)
Get Personalized Help
Key Specs
646
sq ft
1
Beds
1
Baths
2
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 for Black Friday
Use Code CTBBF (limit 1)
Use Code CTBBF (limit 1)
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 137-368
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Thinking about adding on to your home? This lovely design is a win-win: a two-car garage on the bottom and comfortable living space above. If you've got frequent guests or a live-in relative (or perhaps Airbnb customers), they'll appreciate the privacy of this one-bedroom unit. The living room opens completely to the kitchen for a contemporary feeling, with windows letting in lots of light. A full bath is accessed from both the kitchen and the bedroom, taking away the awkwardness of guests having to walk through the bedroom to use the facilities. Check out the walk-in closet!
Floor Plans

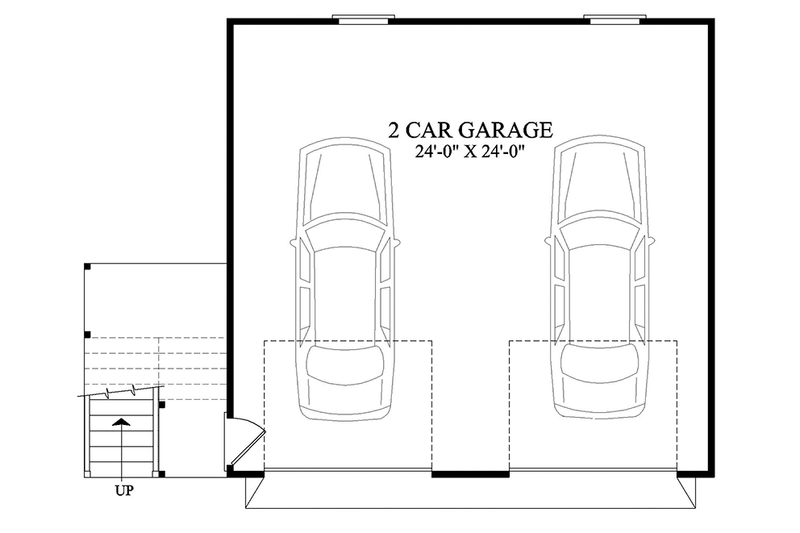

Floor Plan - Main Floor

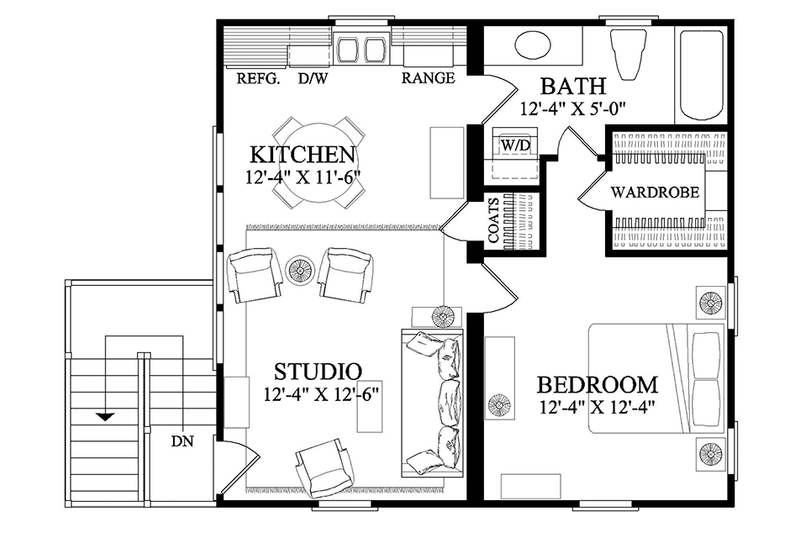

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 24' 8"
Height : 23' 6"
Width : 26' 2"
Area
Garage: 646 sq/ft
Second Floor: 646 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Framing : Conventional
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Guest Suite
Walk In Closet
Additional Room Features
Open Floor Plan
Garage Features
Front Entry Garage
Rooms
Bath:
62 sq/ft width 12' 4" x depth 5'
Bedroom:
152 sq/ft width 12' 4" x depth 12' 4"
Garage:
646 sq/ft width 24' x depth 24'
Kitchen:
142 sq/ft width 12' 4" x depth 11' 6"
Studio:
154 sq/ft width 12' 4" x depth 12' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Designer’s rendering of front elevations
- Foundation and dimensioned floor plans
- Electrical plans
- Section through house

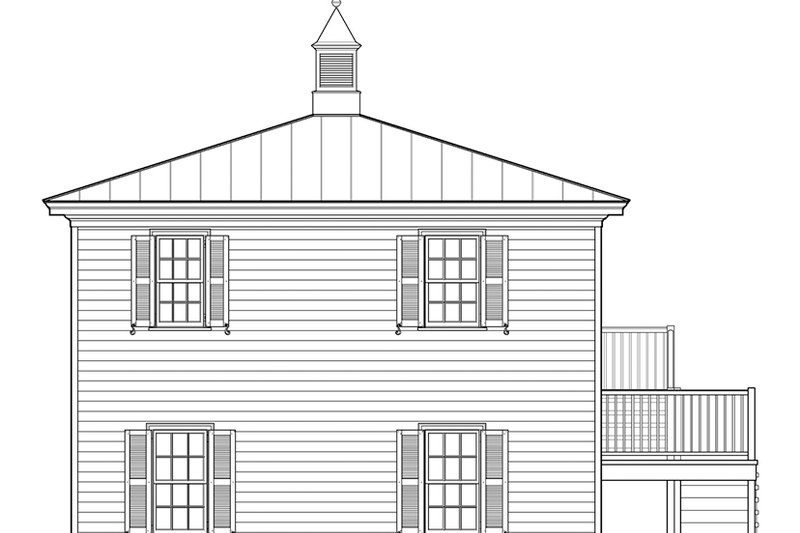

- All exterior elevation
- Selected interior elevations; door and window sizes; fireplace details; stair details; molding details; cabinet details; roof plan and exterior details.
- Roof Plan and Exterior Details
Questions? Call 1-800-528-8070
Plan Set
5 Copy Set:
$700.00
$700.00
5 printed plan sets mailed to you.
8 Copy Set:
$800.00
$800.00
8 printed plan sets mailed to you.
PDF Set:
$1000.00
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1000.00
$1000.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Single Set:
$600.00
$600.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Additional Options
Additional Construction Sets:
$55.00
$55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets:
$55.00
$55.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
