PLAN 929-900
Photographs may show modified designs.
- Jump to:
- All (20)
- Floor plans (4)
Get Personalized Help
Key Specs
7211
sq ft
5
Beds
6.5
Baths
3
Floors
2
Garages
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 929-900
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

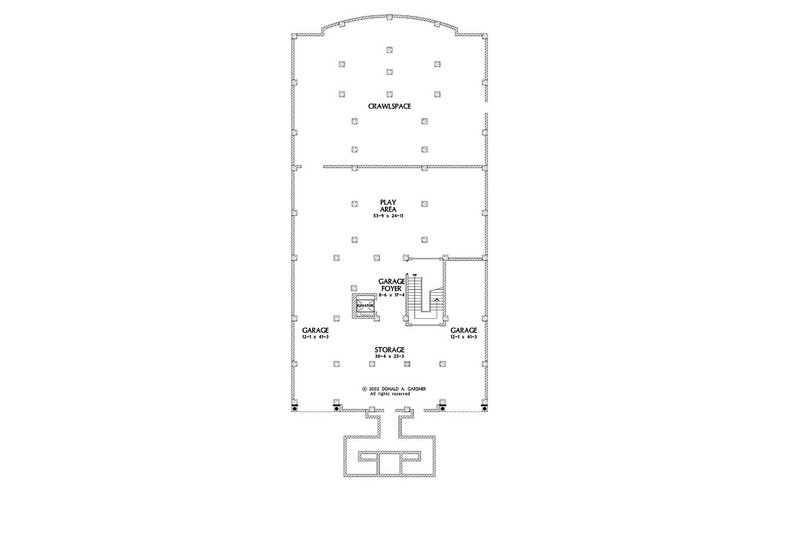

Floor Plan - Other Floor

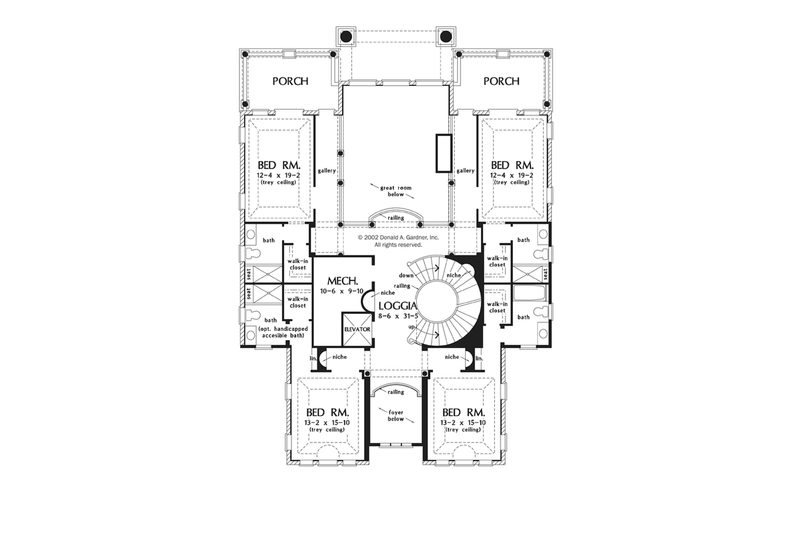

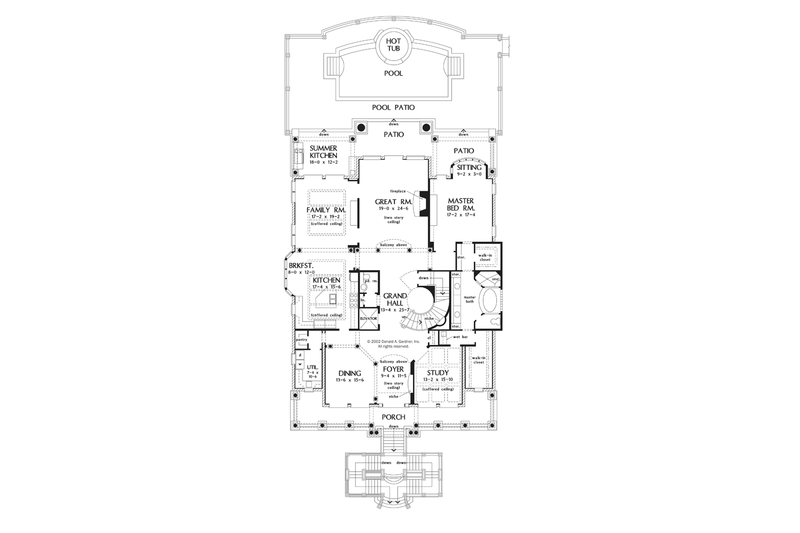

Floor Plan - Main Floor

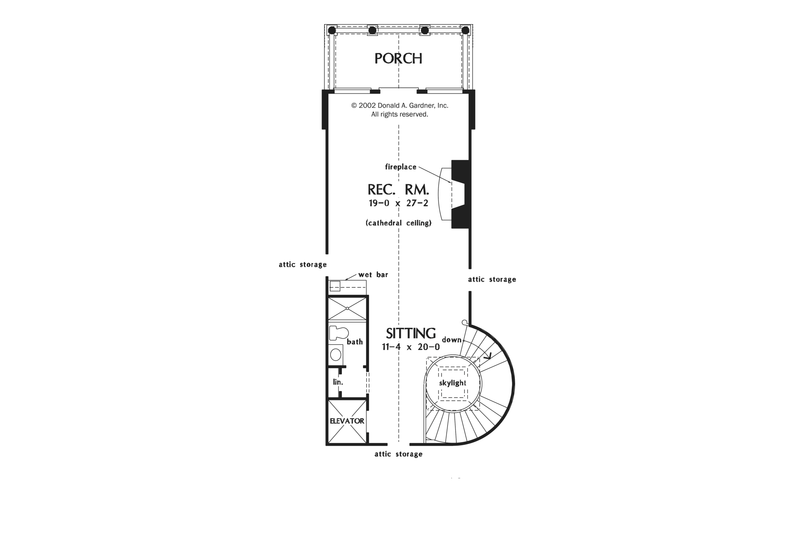

Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 135' 5"
Height : 64'
Width : 60'
Area
First Floor: 3716 sq/ft height 12'
Garage: 3897 sq/ft
Patio: 1601 sq/ft
Second Floor: 2654 sq/ft height 12'
Third Floor: 841 sq/ft height 12'
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Concrete
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Grill Deck Sundeck
Outdoor Kitchen Grill
More
Wheelchair Adaptable
Rooms
Bedroom 2:
width 12' 4" x depth 19' 2"
Bedroom 3:
width 12' 4" x depth 19' 2"
Bedroom 4:
width 13' 2" x depth 15' 10"
Bedroom 5:
width 13' 2" x depth 15' 10"
Breakfast Nook:
width 8' x depth 12'
Dining:
width 13' 6" x depth 15' 6"
Family Room:
width 17' 2" x depth 19' 2"
Foyer:
width 9' 4" x depth 11' 5"
Grand Room:
width 13' 4" x depth 25' 7"
Great Room:
width 19' x depth 24' 6"
Kitchen:
width 17' 4" x depth 15' 6"
Master Bedroom:
width 17' 2" x depth 17' 4"
Master Sitting:
width 9' 2" x depth 5'
Mechanical Room:
width 10' 6" x depth 9' 10"
Recreation Room:
width 19' x depth 27' 2"
Sitting:
width 11' 4" x depth 20'
Study:
width 13' 2" x depth 15' 10"
Summer Kitchen:
width 18' x depth 12' 2"
What's Included In This Plan Set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
Plan Set
$2925.00
$5100.00
$2725.00
Foundation
$0.00
Framing
$0.00
Additional Options
$100.00
$39.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
