Plan Description
Well-suited for a tight site, this 1,925 sq. ft. Craftsman style plan offers a generous foyer with adjacent powder room and hall closet near the stair. The open plan kitchen/living/dining area opens to a porch at the back. The kitchen is organized around a central island. The master suite and two other bedrooms are on the second floor.
Floor Plans

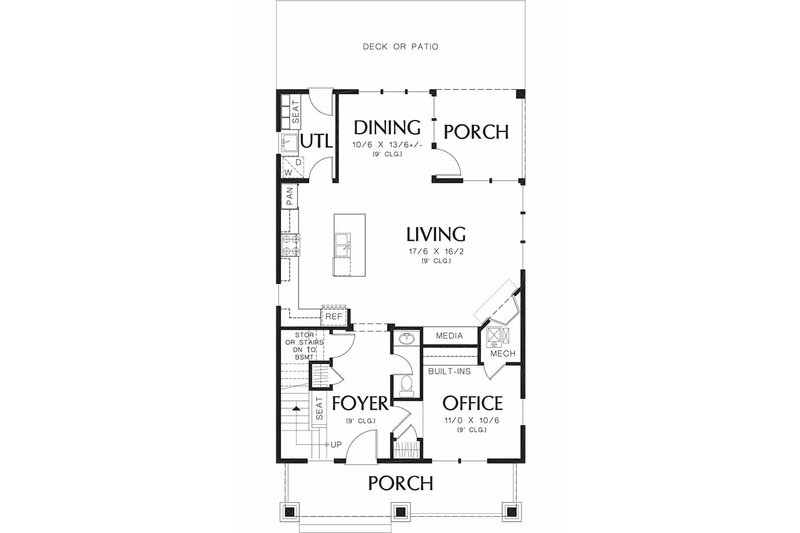

Floor Plan - Main Floor

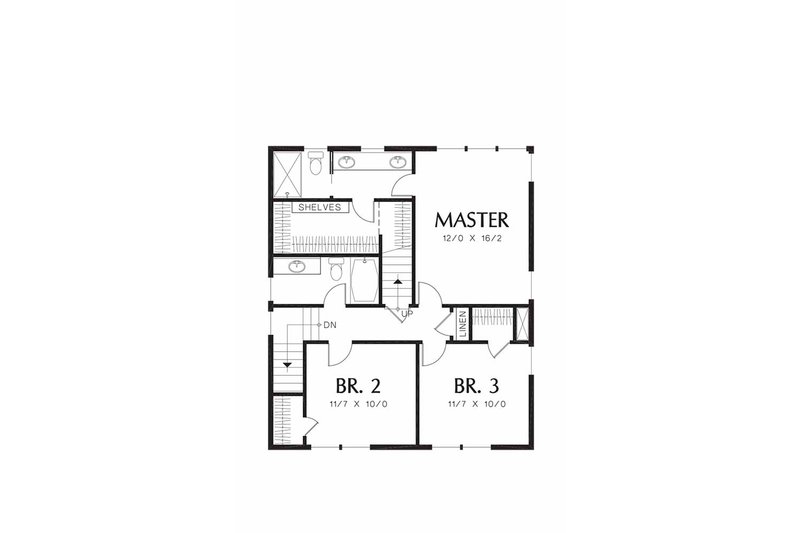

Floor Plan - Upper Floor

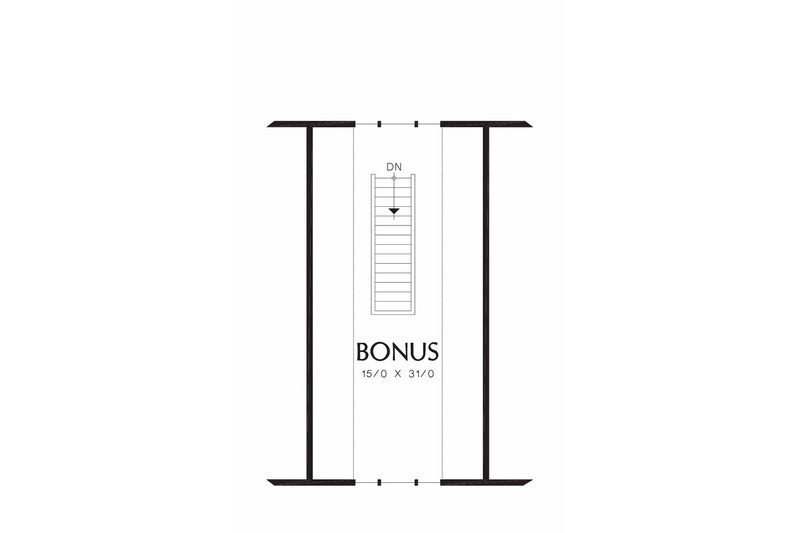

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 48'
Height : 31' 8"
Width : 28'
Area
Bonus: 475 sq/ft
First Floor: 1076 sq/ft
Second Floor: 849 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 8'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Composition
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : 2"x6"
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Play Flex Room
Unfinished Future Space
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
116 sq/ft width 11' 7" x depth 10'
Bedroom 3:
116 sq/ft width 11' 7" x depth 10'
Bonus Room:
475 sq/ft width 15' x depth 31'
Dining:
142 sq/ft width 10' 5" x depth 13' 5"
Hall Bathroom:
55 sq/ft width 11' x depth 5'
Living Room:
283 sq/ft width 17' 6" x depth 6' 2"
Master Bathroom:
75 sq/ft width 15' x depth 5'
Master Bedroom:
194 sq/ft width 12' x depth 16' 2"
Office:
116 sq/ft width 11' x depth 10' 6"
Powder Room:
22 sq/ft width 3' x depth 7' 6"
What's Included In This Plan Set

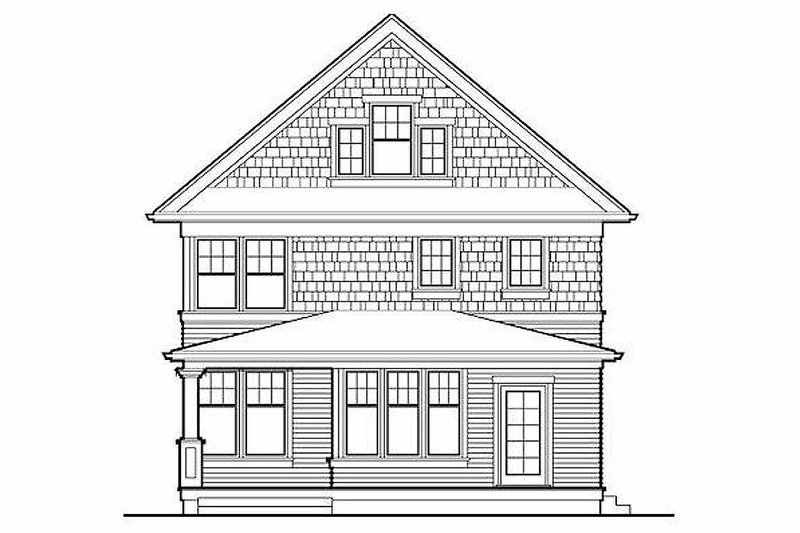

- Exterior Elevations
