PLAN 120-263
Photographs may show modified designs.
- Jump to:
- All (17)
- Floor plans (2)
Get Personalized Help
Key Specs
2192
sq ft
4
Beds
3
Baths
1
Floors
2
Garages
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 120-263
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

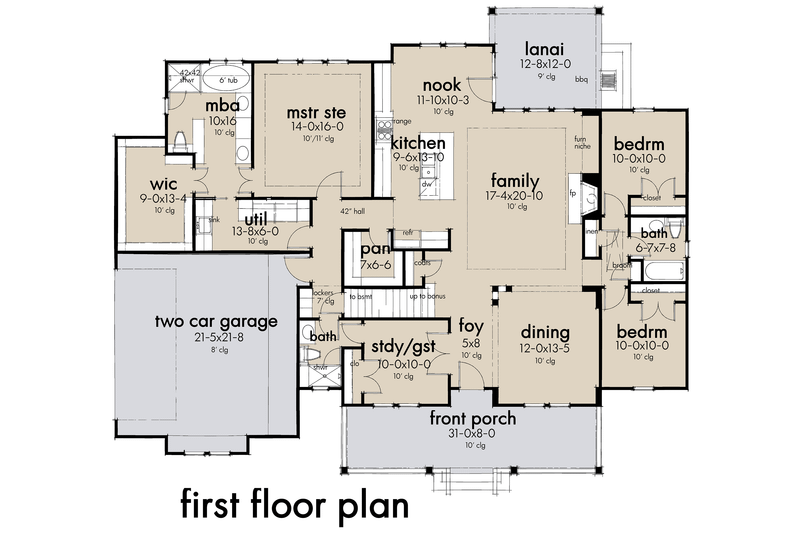

Floor Plan - Main Floor

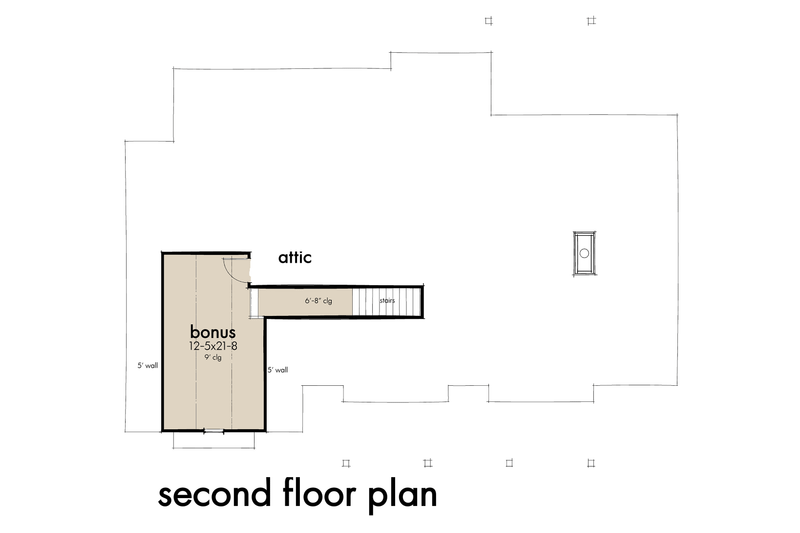

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 55' 6"
Height : 24' 10"
Width : 68' 5"
Area
Bonus : 274 sq/ft
Garage : 505 sq/ft
Main Floor : 2192 sq/ft
Porch : 413 sq/ft
Ceiling
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 8/12
Roof Framing : Conventional
Roof Type : Metal
Secondary Pitch : 12/12
Exterior Wall Framing
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
2-Car Garage:
width 21' 5" x depth 21' 8"
Bathroom:
width 6' 7" x depth 7' 8"
Bedroom:
width 10' x depth 10'
Bonus Room:
width 12' 5" x depth 21' 8"
Dining:
width 12' x depth 13' 5"
Family Room:
width 17' 4" x depth 20' 10"
Foyer:
width 5' x depth 8'
Kitchen:
width 9' 6" x depth 13' 10"
Lanai:
width 12' 8" x depth 12'
Master Bath:
width 10' x depth 16'
Master Suite:
width 14' x depth 16'
Nook:
width 11' 10" x depth 10' 3"
Pantry:
width 7' x depth 6' 6"
Study/Guest:
width 10' x depth 10'
Utility:
width 13' 8" x depth 6'
Walk-In Closet:
width 9' x depth 13' 4"
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$1095.00
$1095.00
$1245.00
$1345.00
$1895.00
Foundation
$0.00
$0.00
$395.00
$395.00
Framing
$0.00
$245.00
Additional Options
$195.00
$50.00
$395.00
$165.00
$295.00
$39.00
$150.00
$395.00
$195.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
