Plan Description
You get to choose how much or little to finish of the many places to expand in this striking home: the bonus room upstairs, an optional walkout basement below, and even an expanded porch with a fireplace outside the great room. Other choices include whether to use the elegant front room for formal dining or close it off as a home office. The spacious island kitchen and great room encourage relaxed gatherings.
Floor Plans
Floor Plan - Main Floor
Floor Plan - Other Floor
Floor Plan - Other Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 74'
Height : 26' 9"
Width : 75'
Area
Bonus: 429 sq/ft
First Floor: 2305 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Roof
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Mud Room
Open Floor Plan
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
width 12' x depth 12'
Bedroom 2 Closet:
width 42' x depth 6'
Bedroom 3:
width 12' x depth 11'
Bedroom 3 Closet:
width 6' x depth 5'
Bonus:
429 sq/ft width 14' x depth 24'
Breakfast:
width 13' x depth 9'
Dining:
width 10' x depth 12'
Family Room:
width 18' x depth 16'
Foyer:
width 7' x depth 12'
Garage:
width 24' x depth 27'
Half Bath:
width 5' x depth 6'
Kitchen:
width 13' x depth 14'
Master Bath:
width 20' x depth 14'
Master Bedroom:
width 14' x depth 16'
Master Walk In Closet:
width 10' x depth 14'
Porch Rear:
width 16' x depth 6'
What's Included In This Plan Set
- Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
- Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
- First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
- Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
- Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
- Second Floor Lighting: The same details as provided for the first floor.

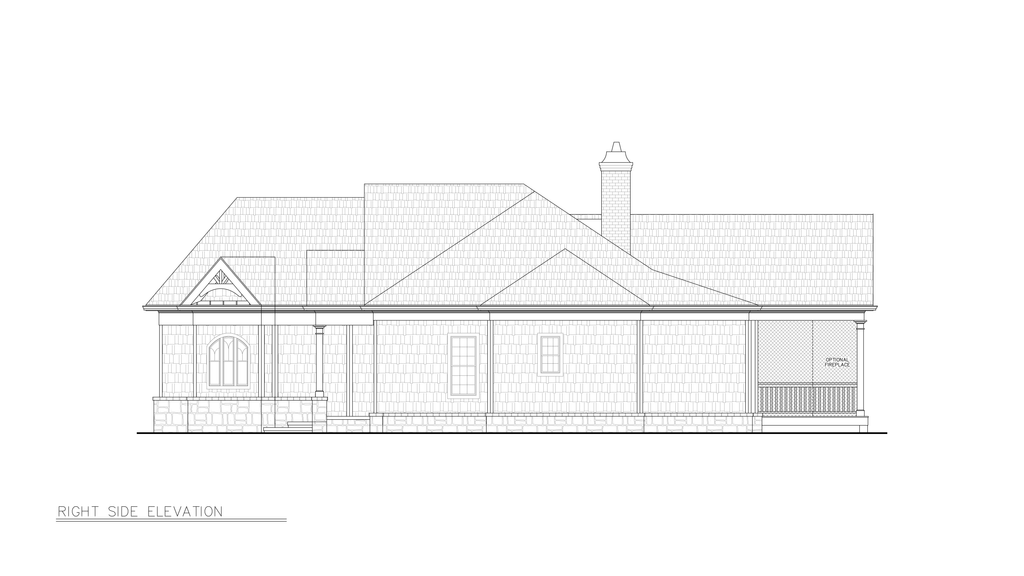

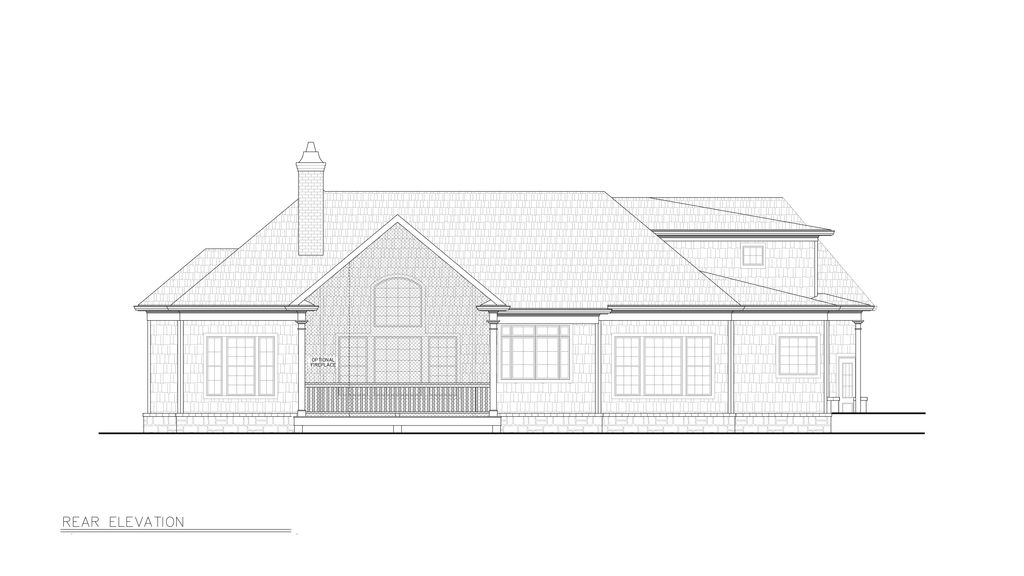

- Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.

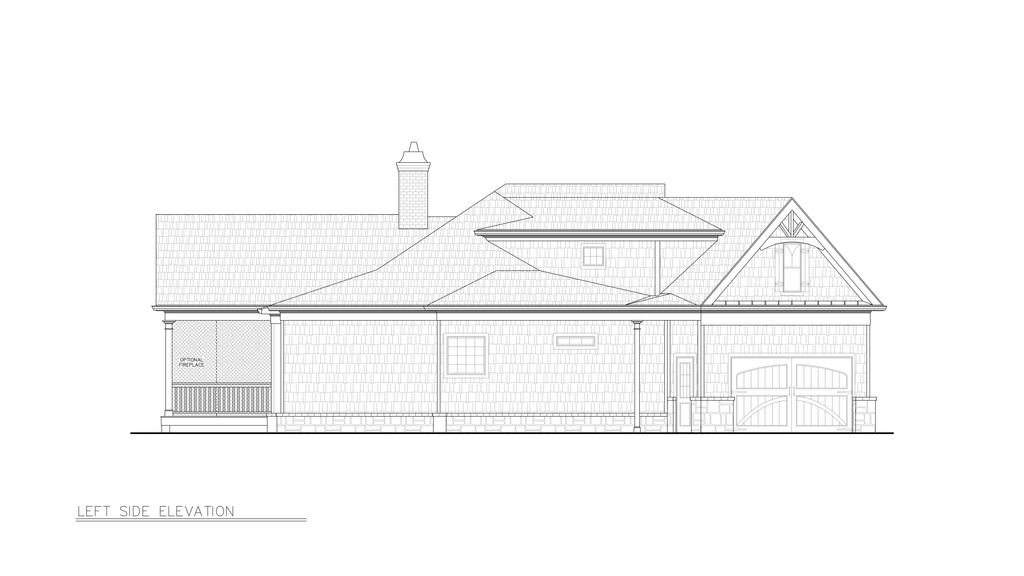

- Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
- Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
- Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
- Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
- General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
