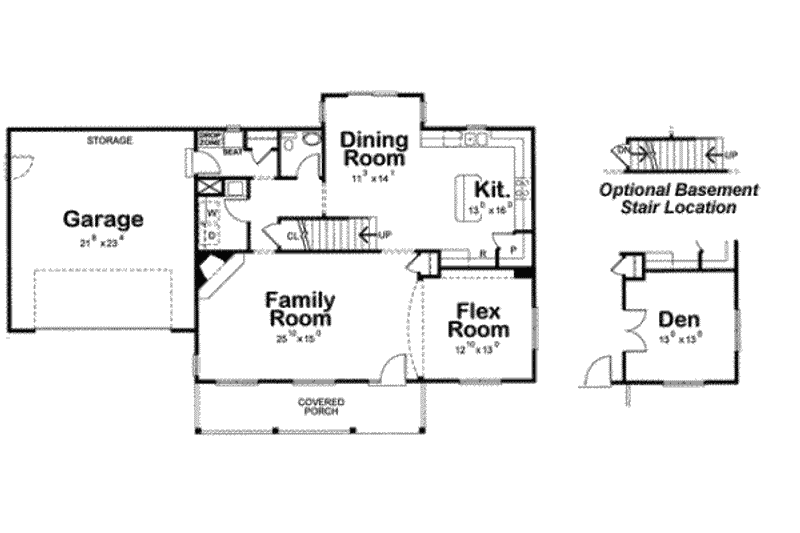

House Plan Design - Traditional Floor Plan - Main Floor Plan #20-1793

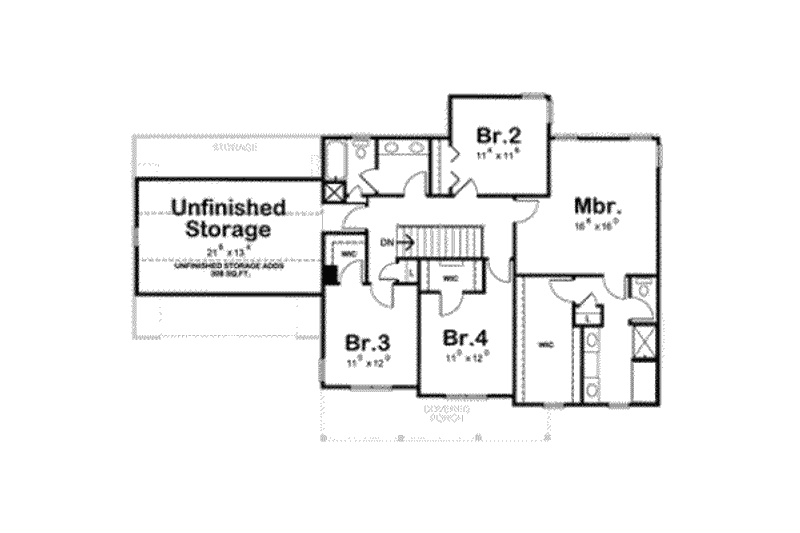

House Plan Design - Traditional Floor Plan - Upper Floor Plan #20-1793

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Traditional Home Plans

Key Specs

2501
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$236.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Use License

$200.00

Allows you to build one more home for each additional license purchased.

Audio Video Design

$132.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$132.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$156.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Unlimited Use License

$400.00

Allows you to build this home as many times as you want.

Subtotal

NOW $964.00

You save $241.00 (20% savings)

Sale ends soon!

Also order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 20-1793

Home > Style > Traditional Home Plans

Key Specs

2501
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 2501 sq ft and has 4 bedrooms and 3 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 40'

Height : 32' 10"

Width : 62'

Area

First Floor: 1248 sq/ft height 9'

Garage: 503 sq/ft height 9'

Second Floor: 1253 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : 2"x6"

Rooms

Bedroom 2:

130 sq/ft width 11' 4" x depth 11' 6"

Bedroom 3:

132 sq/ft width 11' x depth 12'

Bedroom 4:

132 sq/ft width 11' x depth 12'

Dining Room:

158 sq/ft width 11' 3" x depth 14' 1"

Family Room:

387 sq/ft width 25' 10" x depth 15'

Flex Room:

166 sq/ft width 12' 10" x depth 13'

Garage:

497 sq/ft width 21' 4" x depth 23' 4"

Kitchen:

195 sq/ft width 13' x depth 15'

Master Bedroom:

250 sq/ft width 16' 8" x depth 15'

What's Included In This Plan Set

See a sample plan set

Cover Page: Front elevation and informative reference sections including: general notes and design criteria
Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations. Not included with all plans, please call for details.
Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

NOTE: This plan is not available to be built in the state of Nevada. Please call with questions.
