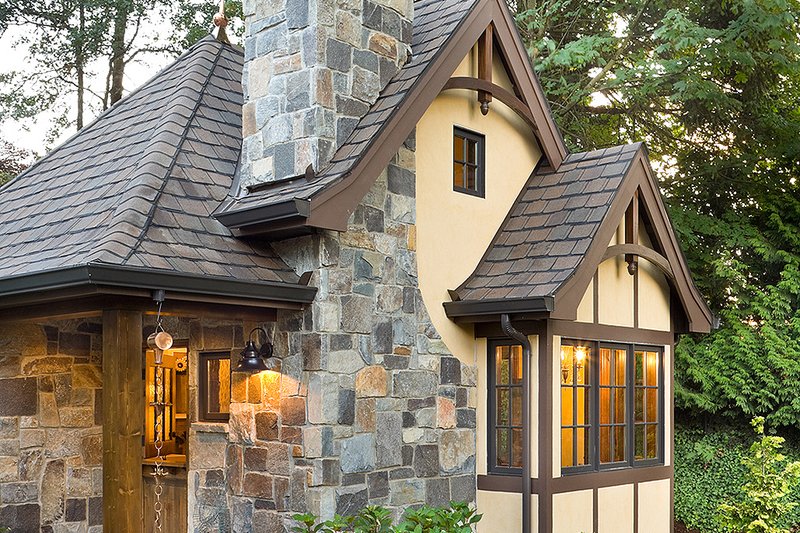

This diminutive but character-filled 300 sq. ft. Tudor cottage plan works as a guest house, in-law unit, or starter home. The main space includes a kitchenette and a walk-in closet.
Floor Plans
Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 23'
Height : 17' 5"
Width : 17' 6"
Area
First Floor: 300 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 13:12
Roof Framing : Stick
Roof Load : 25
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : 2x6
Bedroom Features
