Plan Description

Contemporary 3 unit apartment building designed as an infill building for a minimum sized lot, or as a stand alone. Separate detached garage can be built in rear of lot and accessible to alley, or a garage can be built under the building for direct access to the living spaces. As designed, the building conforms to R-3 zoning for a 36' x 125' lot. This 3 unit apartment building is 1541 sf with 3 bedrooms, 2 1/2 baths and expansive kitchen/eating area. Each apartment provides for open flow between the semi-private areas, with direct access to the outdoor balconies/decks. The units offer an efficient use of space that brakes the rigid grid design. The design offers a rooftop sun deck.

Floor Plans

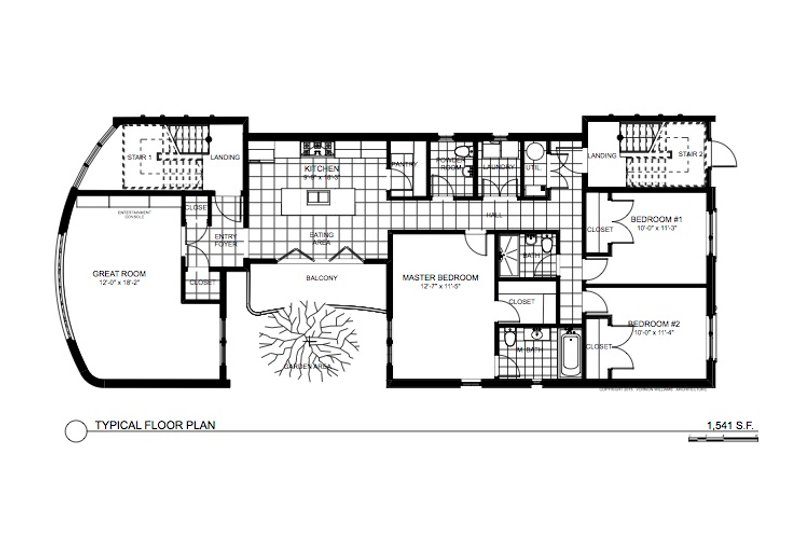

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 31' 3"

Height : 37' 3"

Width : 76' 4"

Area

Decks : 87 sq/ft

Lower Floor : 1541 sq/ft

Main Floor : 1541 sq/ft

Upper Floor : 1541 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Roof Framing : Manuf. Wood trusses

Roof Type : Flat

Exterior Wall Framing

Exterior Wall Finish : Fibrous Cem. panels, stucco, split face CMU on I.C.F. wall panel

Framing : Flooring w/ flat wd. trusses. Walls 2" wd. studs or met. studs

Insulation : R-22 rating w/ I.C.F. wall panel

Bedroom Features

Main Floor Master Bedroom

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Outdoor Spaces

Courtyard

Grill Deck Sundeck

Economical To Build

Energy Efficient Features

Energy Efficient Design

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
