Plan Description
If you are looking for a truly affordable, compact energy efficient home, this could be the plan for you. Primarily designed as a guest house or pool house, it is totally useable as a single family home just for yourself or for a couple. Designed to resemble a period style home from the 1800’s, this little gem feels much larger than it actually is due to the totally open design. The floor plan is designed to accommodate a full size living suite and a dining service for 4. One wall of the living space has been designed to accommodate a Murphy bed with wardrobe so that everything one needs is contained in this open and elegant space. A full size bath is tucked around the corner for privacy and has space for a stacked washer and dryer. When it comes to outdoor living, this delightful cottage really shines with a rocking chair sized front porch and a rear porch that is perfect for entertaining. To round out the features of this cottage, it is a super energy saving design featuring 2x6 exterior walls and a host of other energy efficient features designed to save heating and cooling cost but not add to the building cost.
Floor Plans

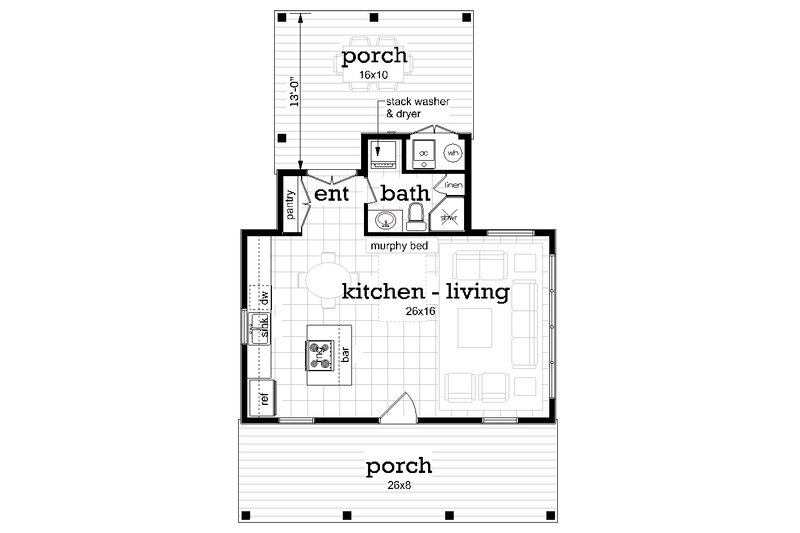

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 42'
Height : 21'
Width : 26'
Area
Main Floor : 523 sq/ft
Porch : 389 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : stick
Roof Type : gable
Exterior Wall Framing
Exterior Wall Finish : Vertical Siding
Framing : 2x6
Insulation : 19
Bedroom Features
Lower Level Bedrooms
Main Floor Bedrooms
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
More
Economical To Build
Empty Nester
Suited For Vacation Home
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
